The automotive industry is undergoing a massive shift. To meet strict emissions standards and improve electric vehicle (EV) range, OEMs and Tier 1 suppliers are under immense pressure to reduce vehicle weight without sacrificing safety or structural integrity.
Under the hood, components are facing higher operating temperatures and harsher chemical environments than ever before. This is where traditional plastics fail, and metals add unwanted weight. The solution? Custom PPA GF30 automotive components. As a premier metal replacement plastic, this advanced material bridges the gap between performance and efficiency.
Why Choose Custom PPA GF30 Automotive Components?

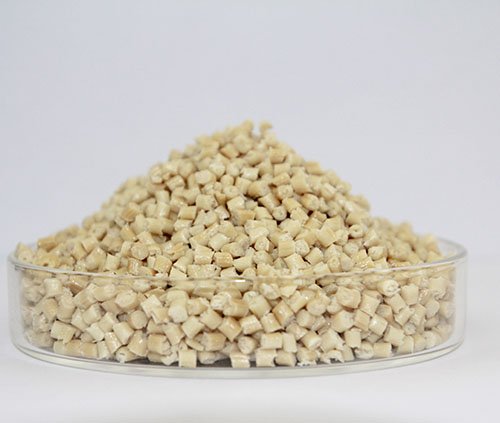

30% Glass Reinforced Polyphthalamide (PPA GF30) is a high-performance aromatic polyamide that excels where standard engineering plastics degrade. Here is why global automotive procurement teams and R&D engineers are making the switch:
Exceptional Thermal Stability: PPA GF30 maintains high mechanical properties even under continuous exposure to extreme temperatures, making it ideal for high heat automotive parts.
Superior Mechanical Strength: The 30% glass fiber reinforcement dramatically increases tensile strength and flexural modulus, allowing these components to withstand intense mechanical stress and vibration.
Significant Weight Reduction: Switching from aluminum or zinc die-cast parts to PPA GF30 can reduce component weight by up to 30% to 50%, directly boosting fuel economy and EV battery range.
Chemical and Fluid Resistance: It offers outstanding resistance to aggressive automotive fluids, including engine oils, coolants, transmission fluids, and road salts.
Dimensional Stability: PPA GF30 has incredibly low moisture absorption compared to standard nylons, ensuring that parts maintain their precise dimensions and structural integrity throughout the vehicle's lifespan.
Key Functions & Internal Structure
Designing custom PPA GF30 automotive components requires a deep understanding of both structural engineering and fluid dynamics. To replace metal successfully, these parts utilize advanced internal geometries:
Load-Bearing Rib Design
Because plastics behave differently than metals under load, internal structural ribbing is strategically integrated into the component design. This maximizes stiffness and distributes mechanical stress evenly without adding unnecessary wall thickness.
Optimized Functional Zoning
Custom components are engineered with distinct functional zones. For instance, in automotive lighting housing or powertrain modules, the structure features a high-precision sealing groove zone for leak-proof assembly, alongside thick-walled load-bearing zones for mounting brackets.
Precision Creep Resistance
The internal matrix of 30% Glass Reinforced Polyphthalamide tightly locks the glass fibers into a crystalline network. This specific microstructure prevents material "creep" (deformation under long-term mechanical stress), ensuring tight seals and exact component tolerances remain intact over hundreds of thousands of miles.
Material Comparison: PPA GF30 vs. Standard Nylon 66 (PA66 GF30)
When selecting materials for critical under-the-hood or structural applications, understanding performance thresholds is vital. Here is how PPA GF30 stacks up against standard standard glass-filled polyamide 66:
Performance Metric | PPA GF30 (High-Performance) | Standard PA66 GF30 | The PPA GF30 Advantage |
Heat Deflection Temp (HDT) | 280°C - 300°C | 250°C | Excels in high heat automotive parts environments. |
Moisture Absorption | Extremely Low (<0.3%) | High (~1.5% - 2.0%) | Retains mechanical strength and size when wet. |
Tensile Modulus (Conditioned) | High Retention (~95%) | Drops significantly (~50%) | Maintains stiffness in real-world driving conditions. |
Chemical Resistance | Excellent (Oils, Coolants, Salts) | Moderate (Degrades under hot glycol) | Long-term reliability in aggressive fluid environments. |
Our End-to-End Custom Manufacturing Process
Transitioning to high-performance polymers requires an industrial-grade manufacturing workflow to ensure zero-defect quality. Our comprehensive OEM/ODM process includes:
[Material Sampling & Selection] ➔ [Prototype Validation] ➔ [Precision Mold Tooling] ➔ [Mass Injection Molding]
Material Sampling & Selection: We analyze your application's thermal, chemical, and mechanical requirements to choose or custom-compound the exact PPA grade required.
Prototype Manufacturing: Using advanced 3D simulation (Moldflow analysis) and rapid prototyping, we validate the part design, knit lines, and fiber orientation before cutting steel.
Precision Injection Mold Tooling: PPA GF30 requires highly specialized, wear-resistant mold steels and precise temperature control. We engineer molds capable of handling high melt temperatures while maintaining tight tolerances.
Mass Production & Quality Control: Our automated injection molding facility scales production seamlessly, utilizing in-line inspection systems to guarantee that every component meets rigorous automotive IATF 16949 standards.
Partner with Qingdao Zhongxin Huamei Plastic Co., Ltd. for Next-Gen Automotive Solutions
At Qingdao Zhongxin Huamei Plastic, we specialize in turning complex engineering challenges into lightweight, high-performance realities. With extensive R&D capabilities, advanced injection molding technology, and a deep understanding of automotive supply chains, we are the trusted partner for OEMs and Tier 1 suppliers worldwide.
Ready to optimize your supply chain and reduce component weight with high-heat, high-strength plastics?
Contact Our Engineering Team Today
Partner with: Flexiparts Plastic
Inquiry Hotline / WhatsApp: +8618765279757
Services Offered: Custom Compounding, Moldflow Design, OEM/ODM Injection Molding, High-Volume Automotive Production.
