Electrical junction boxes serve as vital protective enclosures for power distribution networks, terminal wiring, and home appliance controls. Operating continuously under energized conditions, junction box housings face elevated risks of electrical overload, short-circuit sparks, and heat accumulation. Selecting raw materials with certified flame retardancy, structural toughness, and electric insulation is critical to preventing electrical fires and ensuring compliance with international safety standards.
Standard unmodified ABS resin offers excellent impact strength and processability, but it burns continuously when exposed to open flames and produces flammable molten drips. To meet strict electrical enclosure safety regulations, Qingdao Zhongxin Huamei Plastic Co., Ltd. engineers specialized flame retardant ABS resin V0, designed specifically for injection molding electrical junction boxes, terminal blocks, and switch enclosures.
What Key Fire and Safety Risks Affect Electrical Junction Boxes?
Electrical enclosure designers and injection molders encounter severe material safety requirements across home appliance and industrial wiring applications:
Fire Propagation from Overload Sparks: Internal electrical short circuits generate local high-temperature arcs that quickly ignite non-flame-retardant plastics, causing rapid fire spread.
Glow-Wire Ignition Hazards: Loose wiring terminals produce localized heat buildup, requiring plastic materials to pass stringent glow-wire flammability index (GWFI) testing.
Brittle Cracking and Assembly Failure: Low-quality flame retardant compounds often suffer from filler overload, making plastic housings brittle and prone to cracking at snap-fits or screw bosses during mounting.
Additive Migration and Mold Deposit: Inferior flame-retardant additives bloom onto part surfaces under heat, causing discolored patches, contact corrosion, and high factory scrap rates.

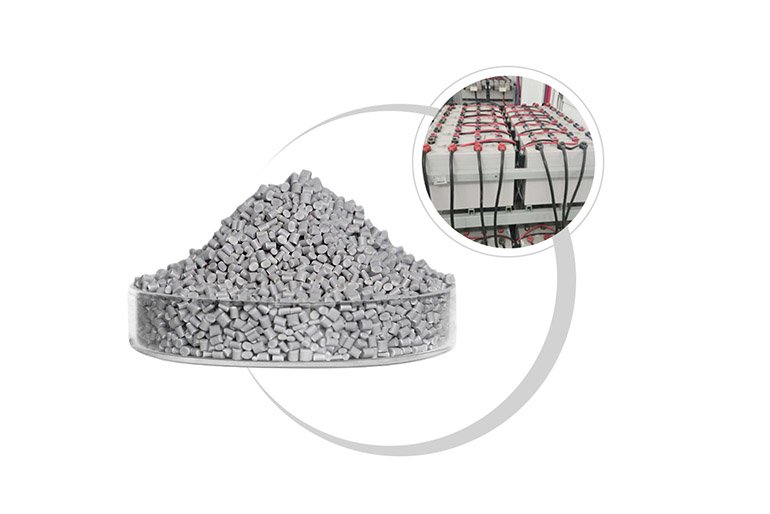

Technical Advantages of Flame Retardant ABS V0 Compounds
Engineered flame retardant ABS resin combines fire self-extinguishing properties with balanced mechanical strength and fluid melt flow:
Certified UL94 V-0 Flame Retardancy: Self-extinguishes within seconds after removing the flame source at a 1.5 mm thickness, effectively blocking flame propagation and preventing molten dripping.
750°C Glow-Wire Test Compliance: Withstands intense hot-wire exposure without ignition or sustained flaming, satisfying international IEC and UL electrical safety norms.
Balanced Impact Strength and Snap-Fit Rigidity: Formulated to maintain structural toughness, preventing edge whitening, stress cracking, or wall fracture during snap-fit assembly and daily handling.

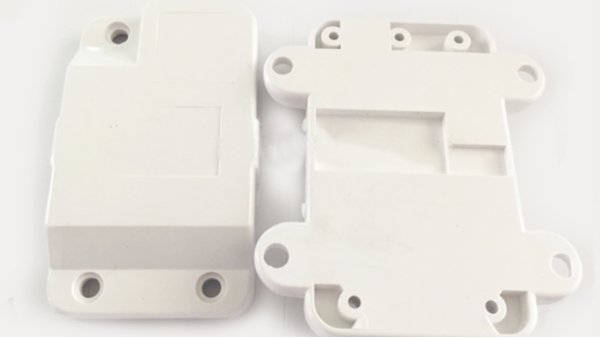

Superior Injection Flow for Thin-Wall Geometries: Features optimal melt flow index (MFI) to fill complex junction box designs with multiple cable knockouts, thin ribs, and tight snap grooves, boosting production yields.
High Electrical Insulation and Material Purity: Prevents electrical tracking and current leakage, ensuring long-term operational safety across home appliance control boards and industrial junction boxes.
Material Performance Comparison for Electrical Housings
| Performance Metric | Flame Retardant ABS Resin V0 | Low-Cost Flame Retardant ABS | Standard Unmodified ABS |
| UL94 Flammability Rating | UL94 V-0 (1.5mm Thickness) | Variable (Inconsistent V-0/V-2) | HB (Flammable) |
| Glow-Wire Resistance (GWFI) | Passes 750°C Test | Frequently Fails Test | Fails Test |
| Mechanical Toughness | High Impact (No Brittle Fractures) | Low (Prone to Cracking) | High Impact |
| Additive Migration / Surface Bloom | Zero Blooming (Clean Molded Surface) | High Blooming & Residue | N/A |
| Batch Property Consistency | High Consistency (MES Tracked) | High Fluctuation | High Consistency |
Partner with Qingdao Zhongxin Huamei Plastic Co., Ltd.
Sourcing reliable flame retardant polymers requires verifying raw material purity, strict flame-retardant additive dispersion, and batch-to-batch physical property stability. Established in May 1997 as an official joint venture enterprise backed by CHIMEI Corporation, Qingdao Zhongxin Huamei Plastic Co., Ltd. is a certified National High-Tech Enterprise with nearly 30 years of compounding expertise.
Operating across a 45,000 m² modern manufacturing facility with 30 automated granulating lines and an annual capacity exceeding 100,000 tons, our factory utilizes automated digital MES management systems and strict quality testing to guarantee zero-defect batch consistency. Our flame retardant compounds fully comply with global RoHS, REACH, and UL electrical safety standards.

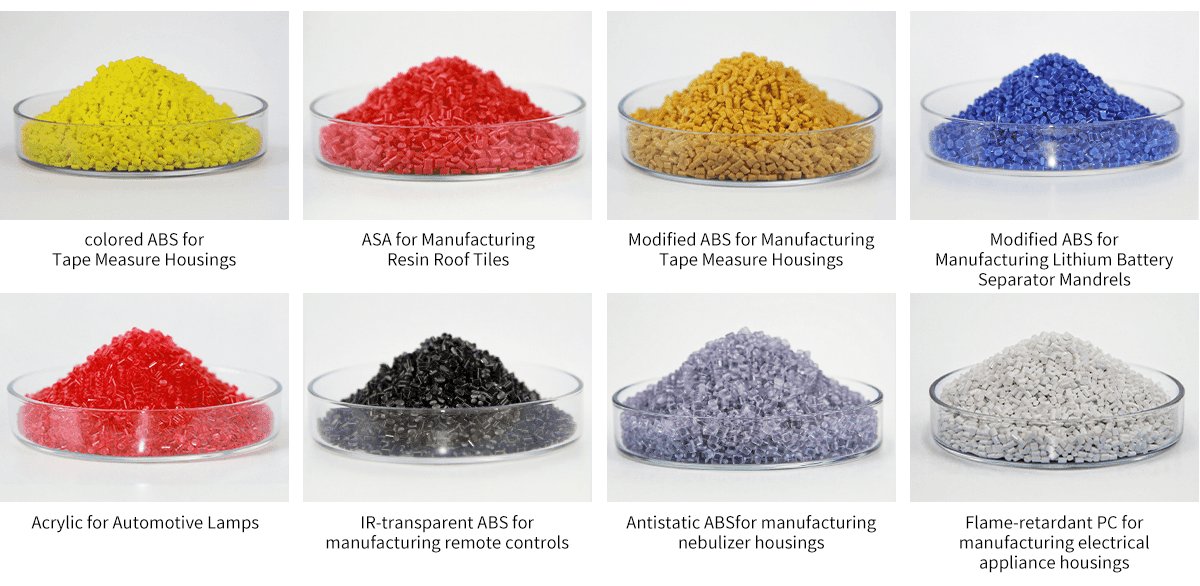

In addition to custom flame retardant ABS compounds, we supply prime general-purpose injection molding resins, including Chimei ABS PA-757Q for high-gloss, low-odor electronics housings and appliance covers. Contact our technical sales team under FOB or EXW shipping terms to request technical datasheets and order evaluation sample batches.
