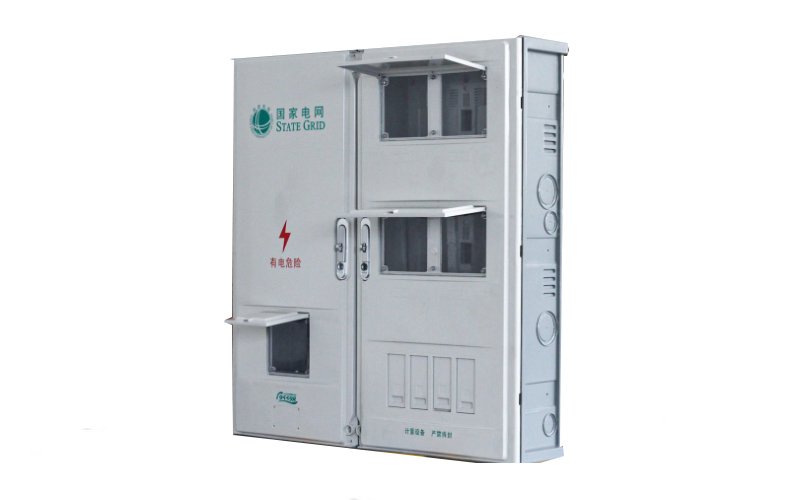

Electrical distribution boxes, industrial control cabinets, and smart meter housings demand the highest level of material safety to protect internal circuitry from structural failures and fire hazards. The raw polymer used to inject these enclosures must deliver excellent thermal insulation, superior impact toughness, precise dimensional control, and rigorous fire-retardant performance under continuous electrical heat loads.
Traditional engineering plastics often struggle to balance high-tier fire ratings with cost-effective manufacturing yields. To solve these industry pain points, power equipment manufacturers are standardizing on specialized flame retardant PC/ABS alloy. This modified compound provides an exceptional balance of mechanical strength and self-extinguishing safety compliance, significantly outperforming conventional resins.
Advanced Fire-Retardant Technology: UL94 V0 Compliance & Glow Wire Excellence
Molding electrical enclosures requires a material formulation that prevents fire propagation from internal component failures or short circuits. Our custom-engineered flame retardant PC/ABS alloy addresses these security mandates through a premium, non-toxic formulation matrix:
[Internal Electrical Fault / Ignition Source] ➔ [Flame Retardant PC/ABS Wall] ➔ [Self-Extinguishes in Seconds (UL94 V0)] ➔ [Zero Flaming Drops]
1.5mm V0 Standard Achievement: The alloy can be custom-compounded to meet varying international fire codes, easily achieving a UL94 V0 rating at a thin 1.5mm profile. It self-extinguishes immediately upon removal of an open flame, eliminating the risk of burning drips igniting secondary materials.
Rigorous Glow Wire Performance: Satisfying the toughest global electrical standards, the material passes the 850°C Glow Wire Ignition Temperature (GWIT) and the 960°C Glow Wire Flammability Index (GWFI), providing a robust defense against electrical overheating.
Halogen-Free Environmental Compliance: Utilizing an advanced halogen-free flame retardant package, this compound passes full RoHS certification. It prevents halogen precipitation and toxic outgassing, making it fully compliant with strict European Union export regulations.
Superior Mechanical Durability and Injection Molding Stability
Beyond its fire safety credentials, this engineered alloy optimizes production parameters for intricate casing shapes that feature complex snap-fits, mounting brackets, and ventilation cutouts:
High Structural Strength: Boasting a tensile strength of up to 60 MPa and a Charpy notched impact strength of 70 KJ/m², the final molded enclosures easily resist heavy impacts, drops, and rough handling during international transport and outdoor installation.
Outstanding Thermal Defense: Featuring a heat deflection temperature (HDT) of up to 106°C, this material handles long-term temperature spikes from high-load internal breakers without creeping, twisting, or losing its structural shape.
Excellent Cost-Performance Metrics: With a stable density of 1.18 - 1.2 g/cm³ and a highly uniform molding shrinkage rate of 0.2% - 0.6%, the resin fills complex molds cleanly. Compared to traditional flame-retardant ABS, this premium PC/ABS alloy cuts material procurement costs by up to 20% while lifting injection molding yield rates by 5%, lowering factory scrap rates.
Technical Specification Overview: Electrical Grade Flame Retardant PC/ABS
| Engineering Performance Metric | Tested Compound Value | Primary Manufacturing & Field Benefit |
| Material Base Classification | Flame Retardant PC/ABS Alloy | Blends high heat resistance with easy injection processing. |
| Flame Retardancy Rating | UL94 1.5mm V0 Certified | Self-extinguishes instantly with zero burning drops. |
| Glow Wire Performance Index | GWIT: 850°C / GWFI: 960°C | Meets the most rigorous international power grid safety standards. |
| Tensile Strength | Up to 60 MPa | Outstanding durability; protects internal components. |
| Notched Impact Strength | Up to 70 KJ/m² | High fracture resistance during installation and transport. |
| Heat Deflection Temp (HDT) | Up to 106°C | Resists long-term heat buildup inside enclosed control cabinets. |
Partner with a Certified Source Manufacturer
When manufacturing high-volume electrical infrastructure, dealing with inconsistent flame retardant batches or failing glow wire audits can disrupt production schedules. Qingdao Zhongxin Huamei Plastic Co., Ltd. operates as an established, 30-year industry joint venture with CHIMEI, officially certified as a National High-Tech Enterprise and a specialized (Little Giant) company.
We specialize in custom compounding, allowing us to tune melt flow indices for thin-walled or thick-walled enclosures, execute precision color matching, and integrate specialized anti-UV stabilizers for outdoor weathered applications. Backed by automated compounding lines and a PhD-led engineering R&D team, we provide personalized, one-on-one technical support and fast sample turnaround to accelerate your product development cycles.
Request a Technical Datasheet & Custom Sample Batch
Direct Sourcing Plant: Qingdao Zhongxin Huamei Plastic Co., Ltd.
Global Hotline Support & WhatsApp: +8618765279757 (WeChat Available)
Supported Commercial Shipping Terms: FOB / EXW Direct Factory Despatch
Available Technical Modifications: Custom Flow Tuning, Precision Electronics Color Matching, Anti-UV Weathering Upgrade, High-Thickness Fire Adjustment.
