The visual performance, color uniformity, and overall lifespan of modern LED displays are heavily dependent on the optical substrate used in their backlight modules and indicator covers. Standard plastics often cause visible hot spots, pixelation, and glare, which significantly degrade image quality.

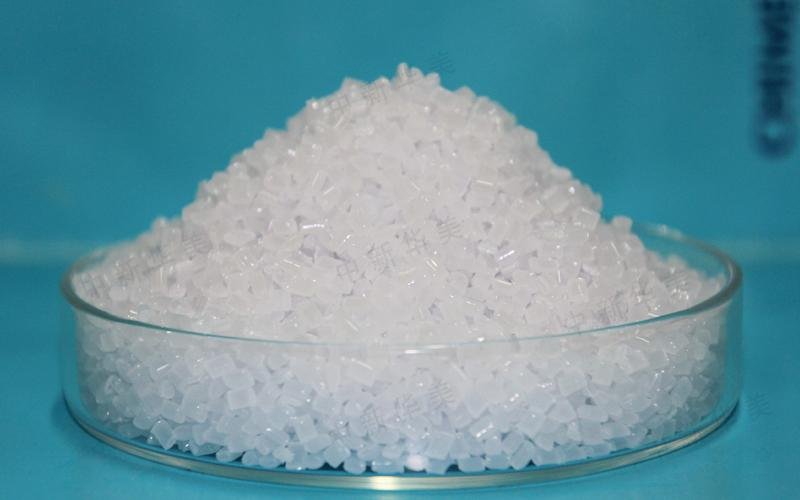

To solve these visual inconsistencies, manufacturers are turning to specialized light diffusion PC material as their core engineering choice. Designed specifically for indoor and outdoor LED displays, small-pitch screens, automotive instrument panels, and commercial electronic signage, this advanced compound delivers flawless light scattering, heat resistance, and structural integrity.
Overcoming Visual Anomalies: Eliminating Hot Spots and Glare
In high-brightness display engineering, direct light from point-source LEDs can cause uneven brightness, distracting glare, and severe visual fatigue for the viewer.
[Point-Source LED Light] ➔ [High Haze Light Diffusion PC Matrix] ➔ [Homogeneous Light Dispersion] ➔ [Uniform Brightness]
Traditional diffuser materials often cause color shifting or yield poor light transmission. Our light diffusion PC material solves this compromise. At a standard 2.0mm thickness, it achieves a visible light transmittance of 70% to 90% (and exceeds 90% in the infrared spectrum).
Its engineered high-haze properties break apart concentrated LED point-lights, eliminating hot spots and bright zones. This provides a completely homogeneous brightness distribution across the screen, ensuring rich, true-to-life full-color HD rendering without any yellow tint or chromatic deviation.
Key Advantages of Our Light Diffusion PC Compounds
Compared to traditional alternatives like Polystyrene (PS) or Polymethyl Methacrylate (PMMA), our modified polycarbonate base provides superior physical endurance and premium optical stability:
Excellent Thermal Stability: With a heat deflection temperature (HDT) of 125°C and a Vicat softening point of 145°C, it withstands continuous heat generated by high-density LED arrays without warping, sagging, or yellowing over time.
High Mechanical Toughness: It features a tensile strength of 60 MPa and an impact strength of 45 KJ/m² for both Charpy and Izod tests. This protects display modules against accidental drops, vibration, and impacts during shipping and installation.
Optimized Injection Flow & Low Shrinkage: Engineered with a melt flow index (MFI) of 22g/10min and a highly predictable mold shrinkage rate of 0.4% - 0.6%, the resin fills complex, thin-walled molds smoothly, maintaining strict dimensional tolerances.
Certified Regulatory Compliance: The formulation delivers UL94 V2 flame retardancy and complies fully with international RoHS environmental standards, ensuring a safe, non-toxic choice for commercial and outdoor displays.
Customizable Optical Properties: We custom-tailor the precise ratio of transmittance and haze to match your exact screen brightness, panel thickness, and LED pitch requirements.
Diverse Application Scenarios in Modern Electronics
Thanks to its balanced mechanical protection and advanced optical clarity, this versatile polycarbonate compound excels in critical display infrastructure:
Commercial HD Display Screens
Ideal for manufacturing large-scale outdoor advertising screens, stadium video walls, and fine-pitch indoor LED matrices where long-range viewing comfort is paramount.
Automotive Instrument Panels
Perfect for electronic dashboards, center console touchscreens, and ambient interior lighting covers that require precise dimensional tolerances under extreme vehicle cabin temperatures.
Backlight Diffuser Plates & Indicator Covers
Widely utilized in manufacturing micro-LED backlight guides, automated factory status indicators, and protective module covers that require high optical clarity and uniform light scattering.
Technical Specification Overview: Light Diffusion PC
| Physical & Optical Property | Standard Performance Metric | Manufacturing & Display Benefit |
| Light Transmittance (2.0mm) | 70% - 90% Visible / >90% Infrared | Maximum brightness retention with clear optical output. |
| Melt Flow Index (MFI) | 22 g/10min | Excellent fluidity for thin-walled backlight guide injection. |
| Tensile Strength | 60 MPa | Rigid structural performance; resists cracking and structural deformation. |
| Impact Strength | 45 KJ/m² (Charpy/Izod) | High impact protection during display transit and field assembly. |
| Heat Deflection Temp (HDT) | 125°C (Vicat: 145°C) | Prevents panel warping or heat-induced aging near hot LED chips. |
| Flame Retardant Rating | UL94 V2 (RoHS Compliant) | Meets strict global electronic safety codes for commercial imports. |

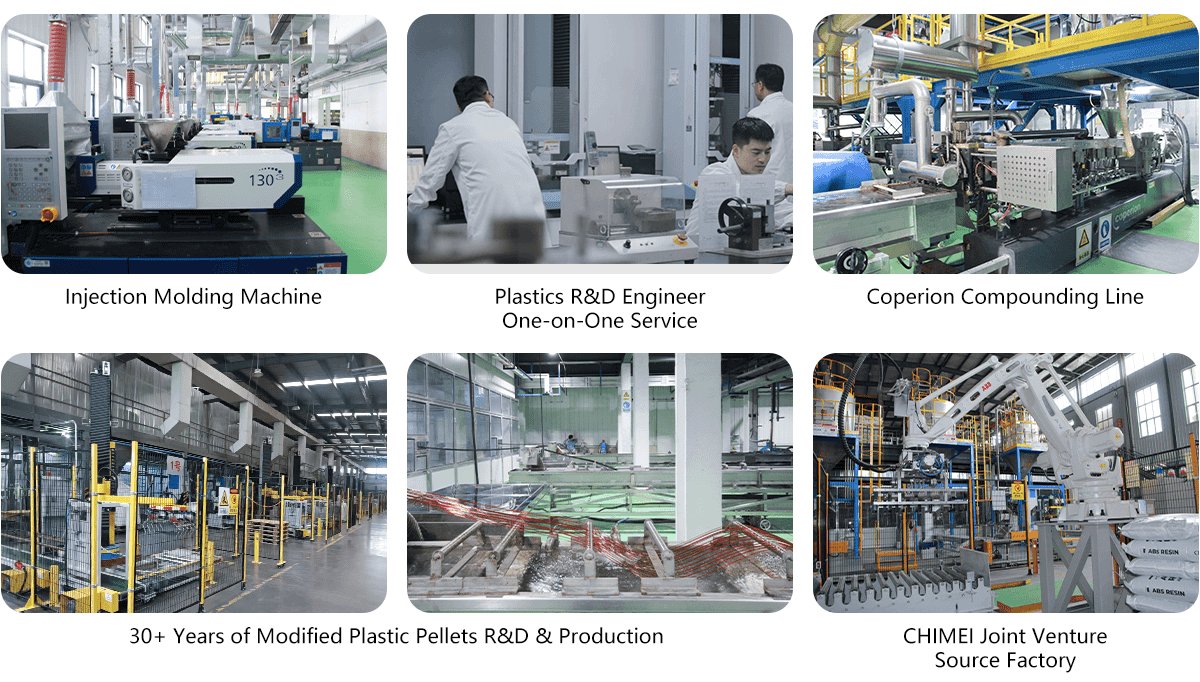

Partner with Qingdao Zhongxin Huamei Plastic Co., Ltd.
Consistent optical uniformity across large production runs requires exceptional batch-to-batch polymer stability. Qingdao Zhongxin Huamei Plastic Co., Ltd. operates as a premium, 30-year industry joint venture with Chi Mei, recognized officially as a National High-Tech Enterprise and an expert "Little Giant" enterprise.
Our advanced production facility utilizes an integrated MES to monitor every step of the blending and compounding process in real time. This precise control limits optical property fluctuations to near-zero margins, boosting our clients' finished product yield rates by approximately 5%. Backed by comprehensive testing equipment and dedicated technical teams, we provide scalable, high-tier material solutions for the global electronics and display market.
Request a Technical Datasheet & Sample Formulation
Verified Supplier: Qingdao Zhongxin Huamei Plastic Co., Ltd.
Direct Sourcing & WhatsApp Support: +8618765279757 (WeChat Available)
Available Trade Terms: FOB / EXW Direct Factory Dispatch
Core Competencies: Custom Haze/Transmittance Calibrations, Color Matching, High-Volume Material Supply Continuity.
