Motorcycle, scooter, and electric vehicle (EV) helmets serve as vital personal protective equipment, where shell materials must withstand severe dynamic impacts, outdoor weathering, and thermal stress. The outer helmet shell absorbs and disperses kinetic shock energy during collisions, preventing catastrophic penetration and structural shattering that could produce sharp, dangerous fragments.
To satisfy strict global impact safety standards while optimizing helmet weight, Qingdao Zhongxin Huamei Plastic Co., Ltd. provides specialized high-impact PC/ABS alloy resin, engineered specifically for protective helmet shells, visors, and heavy-duty industrial safety gear.
What Key Safety Challenges Affect Motor Vehicle Helmet Shells?
Helmet manufacturers face rigorous mechanical and physical testing criteria when injection molding protective shells:
High Energy Impact Absorption: Helmet shells must absorb rapid collision energy without fracturing brittly or losing structural integrity.
Weight Reduction vs. Structural Rigidity: Protective gear must offer high mechanical strength while keeping total helmet weight low to reduce neck fatigue for riders.
Outdoor Solar Degradation: Prolonged UV exposure, rain, and thermal fluctuations cause low-tier plastics to yellow, chalk, and lose impact resistance.
Complex Tooling and Assembly Integrity: Visor mounts, ventilation ducts, and chin strap retention buckles require smooth material flow to prevent internal stress concentrations and surface weld line weaknesses.

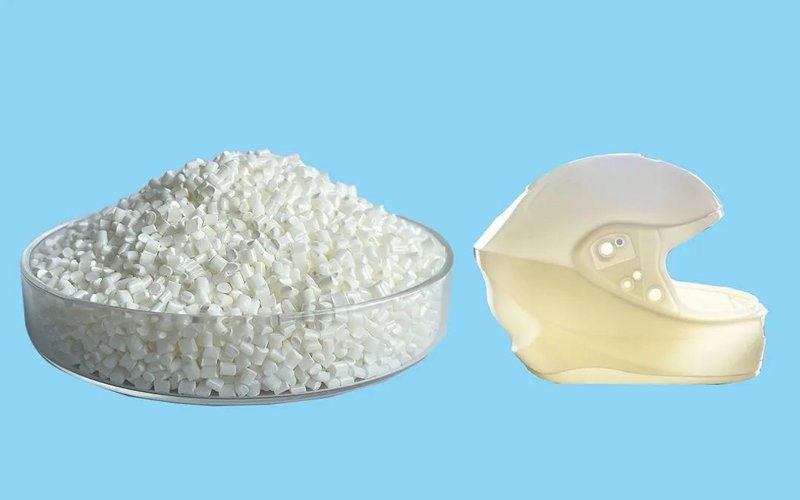

Technical Advantages of High-Impact PC/ABS Helmet Compounds
Engineered high-impact PC/ABS alloy resin combines the high heat resistance, dimensional stability, and impact toughness of polycarbonate (PC) with the superior melt fluidity and processing efficiency of ABS:
Exceptional Impact Toughness and Tensile Strength: Delivers a tensile strength of 45–55 MPa with an elongation at break up to 140%, providing ductile energy dissipation that prevents sharp shell shattering upon severe impact.
High Thermal Stability (HDT up to 110°C): Maintains structural rigidity under extreme sunlight exposure with a heat deflection temperature (HDT) up to 110°C, preventing softening or shell warpage.
Optimized Processing Flow Rate: Features a melt flow rate (MFR) of 13–25 g/10min, ensuring smooth cavity filling for thin-walled, lightweight, or multi-featured helmet designs.
Complete Helmet Solution (Shell + Visor): Pairs seamlessly with optical-grade, UV-resistant PC resin tailored for transparent face shields and visors to deliver complete material coverage for helmet manufacturers.
Custom Color Matched Formulation: Supports pre-colored compounding with high batch-to-batch color consistency, accommodating custom aesthetic requirements without secondary spray painting.
Material Performance Comparison for Protective Helmet Shells
| Performance Metric | High-Impact PC/ABS Resin (Qingdao Zhongxin Huamei) | Standard Unmodified ABS Resin | Commodity Polypropylene (PP) Resin |
| Tensile Strength (MPa) | 45–55 | 30–40 | 25–35 |
| Elongation at Break (%) | Up to 140% | 20–40% | 100–200% (High Creep Risk) |
| Heat Deflection Temp (°C) | Up to 110°C | 80–90°C | 60–80°C |
| Melt Flow Index (g/10min) | 13–25 | 10–20 | 10–30 |
| Impact Fracture Mode | Ductile (No Sharp Fragments) | Brittle Fracture Risk | Flexible / Deforms Easily |
Partner with Qingdao Zhongxin Huamei Plastic Co., Ltd.
Selecting a certified polymer source factory requires verifying raw material purity, automated compounding precision, and batch-to-batch physical property consistency. Established in May 1997 as an official joint venture enterprise backed by CHIMEI Corporation, Qingdao Zhongxin Huamei Plastic Co., Ltd. is a certified National High-Tech Enterprise with 30 years of compounding expertise.
Operating across a 45,000 m² modern manufacturing facility equipped with 30 automated granulating lines and an annual capacity exceeding 100,000 tons, our factory utilizes an automated digital MES process management system to ensure zero-defect batch consistency. We proudly serve global leaders across automotive, drone, 5G, medical, and home appliance industries.

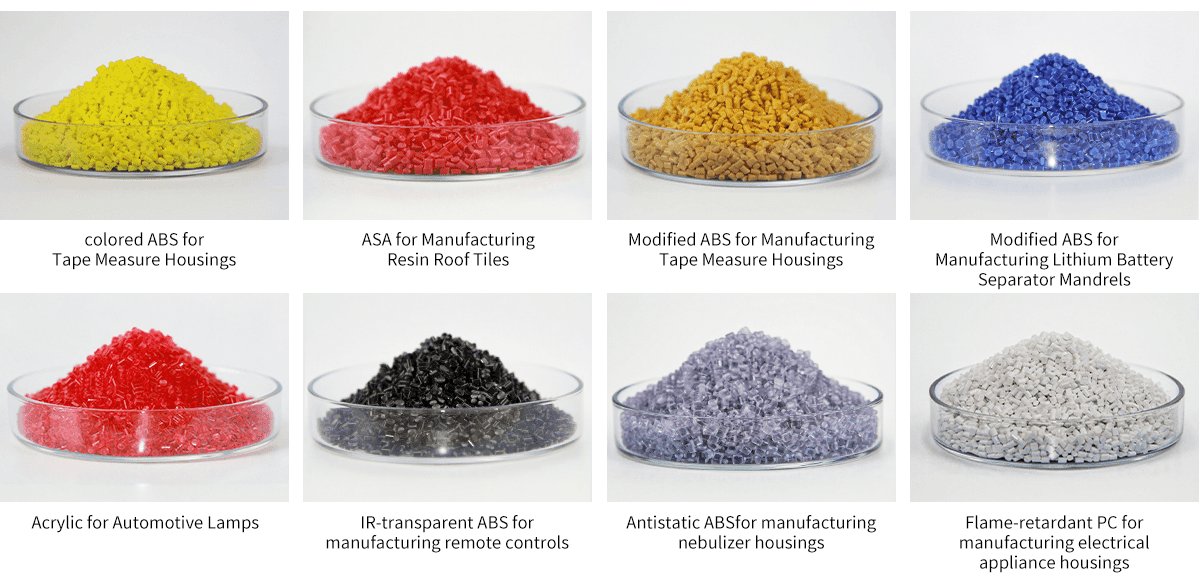

In addition to PC/ABS compounds for protective vehicle helmets, we supply prime general-purpose injection molding polymers including Chimei ABS PA-757Q for high-gloss, low-odor equipment covers and industrial enclosures. Contact our technical engineering team under FOB or EXW shipping terms to request technical datasheets, obtain pre-colored samples, and order evaluation batches.
