In electrical engineering, circuit breakers act as the critical frontline defense for power grid safety. Because these devices manage heavy electrical loads, interrupt faults, and extinguish high-energy electric arcs, the plastic housings and internal structural components face extreme demands.

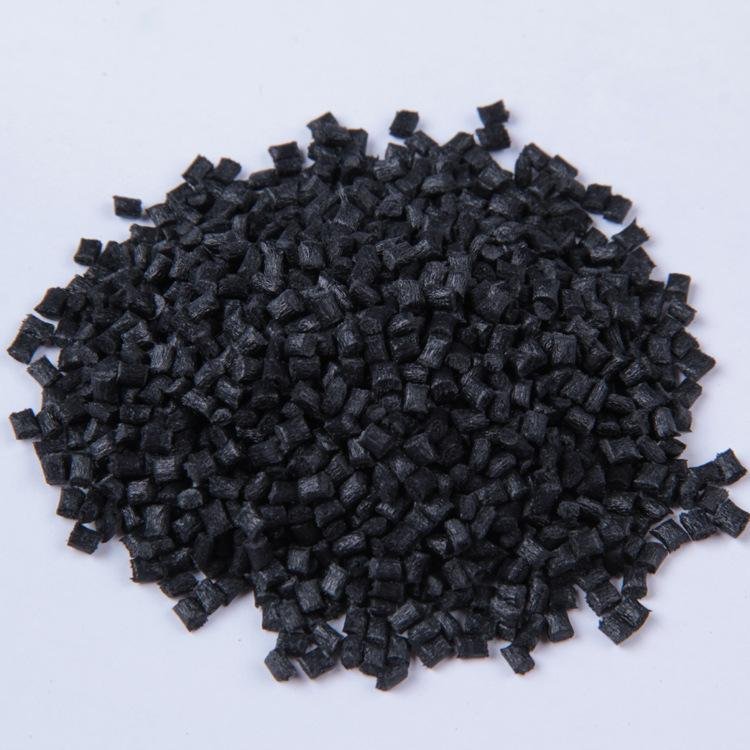

The materials must deliver absolute flame retardancy, superior thermal resistance, and rigid mechanical strength to prevent catastrophic electrical fires. While standard plastics deform under thermal loads, reinforced flame retardant nylon (PA6/PA66)has established itself as the elite industry standard for manufacturing high- and low-voltage circuit breakers.
Engineering Challenges: Combating Electric Arc Heat and Fire Risks
During short circuits or heavy switching cycles, internal contacts generate an intense electric arc. If the surrounding enclosure is molded from standard, non-optimized engineering plastics, the consequences can be dangerous:
[Electric Arc Fault] ➔ [Extreme Thermal Load] ➔ [Standard Plastic Softens / Ignites] ➔ [Structural Collapse & Fire]
Standard polyamides without high-tier flame retardants degrade quickly under these thermal stresses, causing components to soften, lose dimensional alignment, or even ignite and spread open flames.
Our specialized reinforced flame retardant nylon is engineered to eliminate this structural vulnerability entirely. It ensures that the structural housing remains completely rigid and self-extinguishes instantly when exposed to localized electrical faults.
Key Advantages of Our Flame Retardant PA6/PA66 Materials
Formulated specifically for high-reliability electrical hardware, our modified nylon series delivers uncompromising safety margins and mechanical performance:
Certified UL94 V0 Performance: Supporting full custom grade blending across both PA6 and PA66 bases, our entire lineup achieves a strict UL94 V0 rating at thicknesses ranging from 0.8mm to 1.5mm, meaning it self-extinguishes immediately upon removing a flame source.
High Glow Wire Resistance: The material easily passes the 775°C Glow Wire Ignition Test (GWIT), ensuring zero risk of open flame propagation even during severe overcurrent scenarios.
Exceptional Thermal Deflection: With a heat deflection temperature (HDT) zone spanning from 180°C to 250°C, components can withstand long-term exposure to the high ambient operating temperatures found in crowded electrical enclosures.
Brute Mechanical Strength: Reinforced with high-performance glass fibers, our mainstream formulations achieve a tensile strength of 170 MPa and a flexural strength of 240 MPa, successfully absorbing heavy mechanical shocks, vibrations, and high-pressure switching forces.
Halogen-Free Eco-Friendly Formulations: Select grades feature advanced halogen-free flame retardant packages, fully complying with strict EU environmental directives without losing electrical or mechanical characteristics.
Key Functions & Production Consistency for Electrical OEMs
Achieving tight assembly tolerances in terminal blocks, smart switches, and circuit breaker housings requires exceptional polymer stability:
Ultra-Low Shrinkage Control
Our material restricts mold shrinkage to a tight 0.2% - 0.6%. This high level of dimensional precision prevents internal components from loosening, cracking, or losing alignment during long-term field operation.
Industrial Automation Compatibility
With balanced melt viscosity, our pellets support seamless, high-speed injection molding in multi-cavity tooling, ensuring crisp edge definitions on small internal snap-fits and complex dividers.
Boosted Product Yield Rates
Monitored from formulation to packaging by an advanced MES (Manufacturing Execution System), our compounding process guarantees uniform fiber distribution and chemical blending. This reduces batch-to-batch property drift, helping factories increase their finished product yield rates by approximately 5% compared to standard market materials.
[H2] Technical Specification Overview: Circuit Breaker Nylon
Material Property | Standard Performance Metric | Electrical Manufacturing Benefit |
Flame Retardancy | UL94 V0 (0.8mm - 1.5mm) | High-tier self-extinguishing safety; prevents fire spread. |
Glow Wire Test (GWIT) | 775°C | Zero open-flame propagation during high-temp electrical faults. |
Tensile Strength | 170 MPa | Outstanding load capacity; resists heavy mechanical impact. |
Flexural Strength | 240 MPa | High rigidity; prevents structural bending or casing distortion. |
Heat Deflection Temp | 180°C - 250°C | Stabilizes internal dimensions under continuous electrical arc heat. |
Partner with Qingdao Zhongxin Huamei Plastic Co., Ltd.
For high-precision electrical component manufacturing, choosing a reliable material partner is essential. Qingdao Zhongxin Huamei Plastic Co., Ltd. brings 30 years of advanced compounding expertise to the market, operating as an established joint-venture facility with Chi Mei. We are officially certified as a National High-Tech Enterprise and a National-Level "Little Giant" enterprise.
Our massive 45,000 square meter complex houses 30 automated pelletizing lines, pushing our annual production capacity past 50,000 tons. With dedicated technical engineering teams ready to provide one-on-one support, rapid sample dispatch, and tailored formulation adjustments, we deliver reliable, one-stop material solutions for the global power and electronics industry.
Request a Technical Datasheet & Sample Formulation
Verified Manufacturer: Qingdao Zhongxin Huamei Plastic Co., Ltd.
Direct Sourcing & WhatsApp Support: +8618765279757 (WeChat Available)
Supported Trade Terms: FOB / EXW Direct Factory Dispatch
Comprehensive Solutions: Custom PA6/PA66 Blending, Halogen-Free Flame Retardants, Glass Fiber Reinforcement, Tailored Electrical Grade Engineering.
