Outdoor architectural profiles, co-extruded fence railings, synthetic resin roof tiles, and exterior wall cladding are subjected to non-stop outdoor weathering. Unprotected exposure to harsh ultraviolet (UV) radiation, severe rain, atmospheric salt spray, and extreme thermal cycling quickly degrades lower-tier polymer materials, leading to surface yellowing, loss of gloss, micro-cracking, and structural warping.
To prevent premature architectural degradation and avoid expensive ongoing maintenance, Qingdao Zhongxin Huamei Plastic Co., Ltd. provides engineered weather resistant ASA resintailored for co-extruded profiles, outdoor building materials, and heavy-duty exterior enclosures.
What Key Weathering Challenges Affect Outdoor Extruded Profiles?
Exterior building profiles and synthetic roofing products face continuous environmental threats throughout multi-decade installation lifespans:
UV Radiation and Thermal Yellowing: Solar UV light severs standard polymer molecular chains, causing yellowing, surface powdering (chalking), and loss of physical strength.
Color Loss Across Extreme Climates: Fluctuating humidity, high-altitude sun exposure, and severe freeze-thaw cycles cause spotty color fading across architectural profiles.
Extrusion and Co-Extrusion Surface Defects: Poor material flow stability leads to co-extrusion delamination, surface pinholes, profile warping, and high scrap rates.
Structural Warpage and Thermal Creep: Inferior plastics soften under summer thermal buildup, causing roof tiles and fence railings to bow or sag out of alignment.
Technical Advantages of Weather Resistant ASA Profile Compounds
Engineered weather resistant ASA resin incorporates an acrylic ester rubber backbone free of vulnerable double bonds, offering specialized performance for extrusion and co-extrusion processing:
Exceptional Anti-UV Color Retention ($\Delta E < 1.0$): Maintains a color difference ($\Delta E$) under 1.0 after a 168-hour Q-UV accelerated weathering test, preventing yellowing and loss of surface gloss.
Paint-Free Co-Extrusion Versatility: Flows effortlessly through profile co-extrusion dies, forming a durable protective cap layer over PVC or WPC substrates without requiring secondary paint or film lamination.
Higher Factory Yield Rates (+5%): Predictable, stable mold volumetric shrinkage and consistent melt flow minimize profile twisting and surface pitting, boosting production yield by approximately 5%.
Balanced Mechanical Rigidity and Toughness: Combines structural stiffness with impact resilience to withstand wind loads, fallen debris, and thermal expansion across both freezing northern winters and hot southern summers.

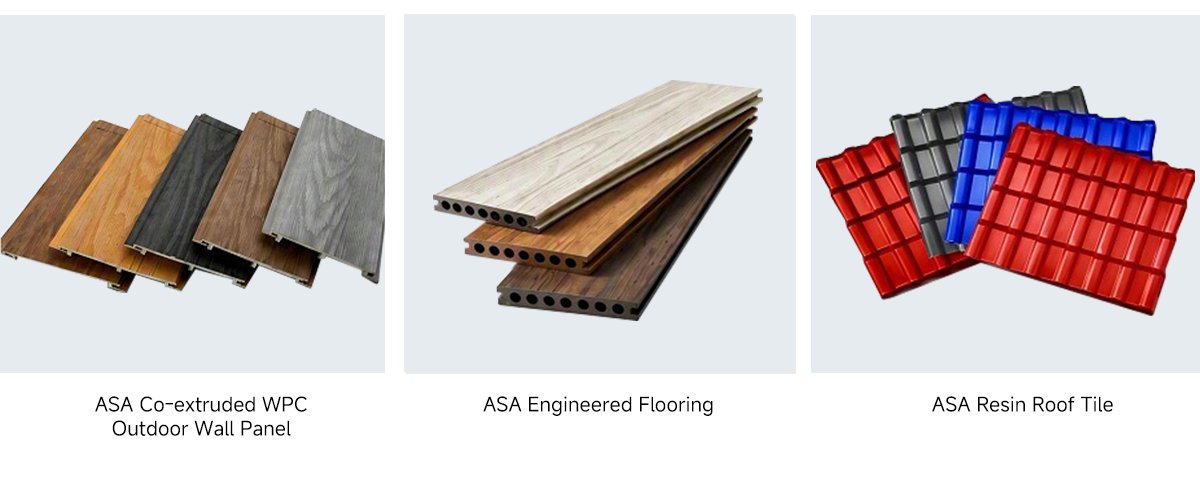

Broad Application Range: Ideal for co-extruded railings, resin roof tiles, outdoor wall louvers, 5G radomes, automotive exterior trims, and outdoor furniture structures.
Material Performance Comparison for Exterior Profile Cap Layers
| Performance Metric | Weather Resistant ASA Resin (Qingdao Zhongxin Huamei) | Standard Unmodified ABS Compound | Commodity Rigid PVC Compound |
| UV Resistance Mechanism | Inherent Anti-UV Acrylic Backbone | Poor (Double-Bond Degradation) | Requires High UV Additives |
| Color Delta ($\Delta E$) (168h Q-UV) | $< 1.0$ (High Color Retention) | $> 3.5$ (Severe Discoloration) | $> 2.5$ (Fading / Yellowing) |
| Co-Extrusion Yield Boost | Up to +5% Yield Improvement | Baseline | Moderate |
| Paint / Film Requirement | None Required (Paint-Free) | Required for Outdoor Use | Often Requires Laminate |
| Climate Adaptability | Severe Cold & Extreme Heat | Prone to Low-Temp Embrittlement | Thermal Distortion Risk |
Partner with Qingdao Zhongxin Huamei Plastic Co., Ltd.
Selecting a certified polymer source factory requires verifying raw material purity, automated compounding precision, and batch-to-batch physical property consistency. Established in May 1997 as an official joint venture enterprise backed by CHIMEI Corporation, Qingdao Zhongxin Huamei Plastic Co., Ltd. is a certified National High-Tech Enterprise with 30 years of custom compounding expertise.
Operating across a 45,000 m² modern manufacturing facility equipped with 30 automated granulating lines and an annual production capacity exceeding 100,000 tons, our factory utilizes an automated digital MES process management system to monitor parameters and guarantee zero-defect batch consistency. We offer complete custom color matching across full spectrum colorways.
In addition to weatherable ASA compounds for outdoor building materials, we supply prime general-purpose injection molding polymers including Chimei ABS PA-757Q for high-gloss, low-odor equipment covers and industrial enclosures. Contact our technical engineering team under FOB or EXW shipping terms to request technical datasheets, obtain pre-colored samples, and order evaluation batches.
