Core Status of PA6 GF30 In Modern Material Replacement Trend
Nowadays more and more industrial fields are replacing traditional metal parts with high performance engineering plastics which feature light weight high precision and stable heat resistance. Among all reinforced nylon materials PA6 GF30 glass fiber reinforced polyamide 6stands out perfectly balancing lightweight design and powerful mechanical performance.
This reinforced modified material greatly improves load bearing capacity and anti deformation ability and expands the application scope of PA6 in automotive electronic electrical precision machinery and other demanding industries. This article fully introduces core characteristics industrial application scenarios standard processing guidelines and different reinforce10d+6 PA6 grades and recommends stable supply solutions for global buyers.
Basic Definition And Market Prospect of PA6 GF30
What Exactly Is PA6 GF30
PA6 also named Nylon 6 is one of the most mainstream general engineering plastics with stable basic tensile strength and outstanding wear resistance. However pure PA6 has obvious defects including high water absorption insufficient rigidity and easy deformation under high temperature environment.
Adding 30% short glass fiber through twin screw compounding technology successfully upgrades its overall performance. Compared with virgin PA6 finished PA6 GF30 achieves 50 to 100 percent promotion in tensile strength and flexural rigidity meanwhile realizing lower thermal expansion rate better dimensional stability and stronger high temperature resistance suitable for long term use under high load working conditions.
According to industry market research data the global polyamide market maintains steady growth trend. The compound annual growth rate will reach 6.02 percent from 2024 to 2029. Driven by automobile lightweight and electronic upgrading demands high specification glass fiber reinforced PA6 materials represented by PA6 GF30 keep rising in market demand.
Industrial Practical Value of PA6 GF30
PA6 GF30 becomes core material supporting metal to plastic transformation. Its low density effectively cuts down overall product weight and effectively improves vehicle energy saving effect especially in automotive industry. Meanwhile its comprehensive cost is far lower than metal raw materials and simplifies complex part integrated molding greatly improving production efficiency.
H2: Formula Composition And Reinforcement Principle of PA6 GF30
H3: Standard Material Formula Ratio
Regular industrial grade PA6 GF30 fixed proportion is mature and stable. Virgin PA6 resin accounts for 65 to 70 percent to guarantee basic wear resistance fluidity and processing performance. 30 percent short glass fiber serves as main reinforcing filler to enhance rigidity structural strength and high temperature deformation resistance.
A variety of functional additives can be added selectively including antioxidant UV stabilizer internal lubricant and flame retardant components to match different outdoor high temperature or insulation use environments. Formal compounding production adopts twin screw extruder to ensure even fiber dispersion and tight combination between fiber and nylon matrix so as to maximize reinforcement effect.
Internal Structure And Stress Resistance Mechanism

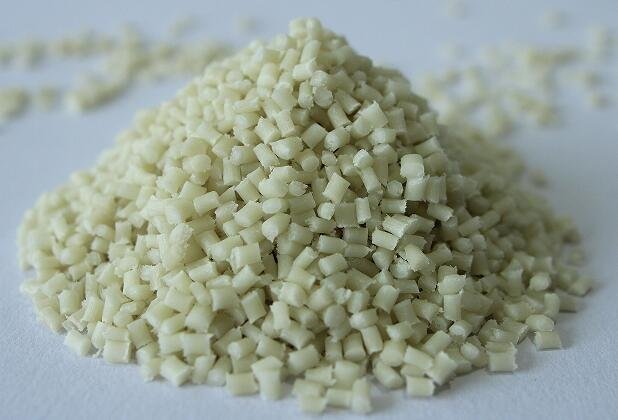

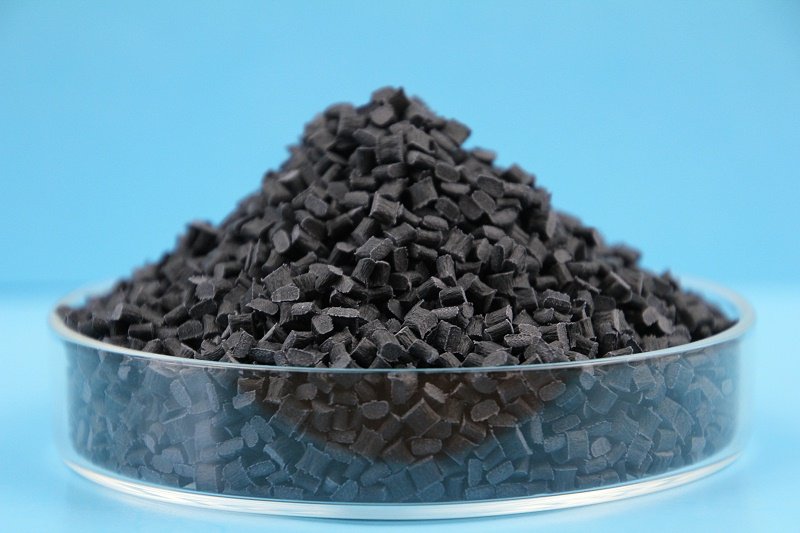

Inside qualified PA6 GF30 pellets glass fibers are evenly distributed inside PA6 base material. When external force acts on finished plastic parts internal glass fibers can evenly disperse bearing pressure effectively restrain crack expansion raise overall elastic modulus and keep original shape unchanged under long term load. At the same time it greatly reduces thermal shrinkage value avoiding size deviation caused by temperature difference change.
Outstanding Comprehensive Performance Advantages of PA6 GF30
High mechanical strengthAfter glass fiber reinforcement PA6 GF30 can bear heavy load and strong impact without permanent deformation fully meeting structural part assembly and use standards.
Excellent high temperature resistanceIts melting point reaches 215 Celsius degree and long term stable service temperature is up to 150 Celsius degree. It will not soften or lose mechanical strength under continuous high temperature working environment.
Reliable electrical insulation propertyIt owns stable insulation performance widely applicable to all kinds of electronic component shells and internal insulating structural parts.
Stable chemical resistanceIt keeps good tolerance against most alkaline substances daily lubricating oil and fuel but has weak resistance to strong acid environment so it needs to avoid long term strong acid contact.
Superior dimensional stabilityFiber filling greatly reduces water absorption rate effectively solves pure nylon easy swelling problem in humid environment and ensures high precision assembly tolerance.
Good processing adaptabilityThe material maintains good molding fluidity matching most mainstream injection molding equipment easy to realize mass production.
H2: Main Application Fields of Industrial Grade PA6 GF30
H3: Automotive Industry Core Components

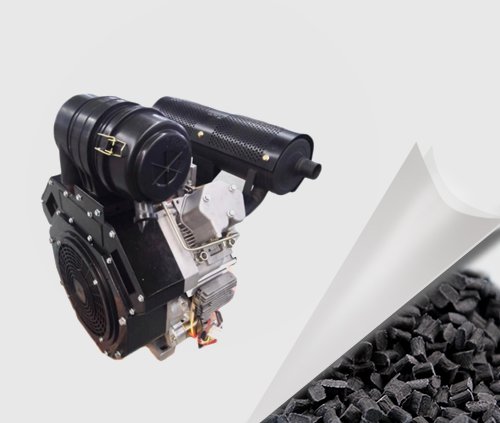

PA6 GF30 is widely used in automobile engine peripheral parts air intake manifold water pump shell fixed bracket and automobile electrical connectors. It realizes vehicle lightweight upgrade while ensuring long term driving stability and effectively optimizing fuel consumption performance.
Electronic And Electrical Industry
It is used for producing precision connectors power switch structural parts and electrical equipment inner support shells relying on its insulation performance and impact resistance.
H3: Industrial Mechanical Equipment
It can be made into industrial gears wear resistant bearings and mechanical transmission accessories suitable for high frequency operation and friction working scenes.
H3: Daily Hardware And Power Tools
High strength PA6 GF30 is applied to power tool shells garden tools and sports equipment with strong drop resistance and long service life.
Standard Production And Molding Processing Requirements
Pellet Production Flow
Raw material accurate proportioning high temperature melt blending constant temperature extrusion cooling strip cutting finished pellet screening sealed drying storage are complete standardized production steps strictly controlling processing temperature between 240 Celsius degree and 270 Celsius degree to prevent glass fiber breakage and performance decline.
Common Molding Process Parameters
Injection molding is the most common processing method. Recommended barrel temperature ranges from 240℃ to 270℃ and mold temperature is controlled at 80℃ to 110℃ to reduce product warpage. Before formal production raw materials need pre drying treatment at 80℃ for 4 to 6 hours to control moisture content below 0.1 percent. It can also be used for extrusion molding and CNC precision machining after forming.
Common Glass Fiber Reinforced PA6 Material Grade Classification
Except mainstream PA6 GF30 the market has diversified reinforced nylon grades to meet differentiated cost and performance demands including low fiber content PA6 GF10 PA6 GF15 medium specification PA6 GF20 high strength grade PA6 GF33 PA6 GF35 PA6 GF50 and special modified blend material PA6 plus ABS GF20. Different fiber contents correspond to different rigidity toughness and production cost which can be selected according to actual product load standards.
Working Condition Analysis And High Quality PA6 GF30 Supply Solution
From actual industrial use perspective ordinary low load low precision parts can select low fiber content reinforced PA6 to control cost. For automobile engine parts high temperature mechanical structural parts and high precision electronic assembly parts it is necessary to select high stability standard PA6 GF30 modified nylon.
Qingdao Zhongxinhuamei Plastic Co., Ltd specializes in R&D production and customized modification of glass fiber reinforced nylon series materials. We stably supply standard PA6 GF30 PA6 GF15 PA6 GF35 and other full series reinforced PA6 pellets. Strict production process control ensures stable batch performance uniform fiber dispersion low water absorption and excellent anti warpage effect.
Our reinforced nylon materials are fully applicable to automobile parts household appliances industrial machinery and new energy supporting components. We support custom color matching impact modification low temperature toughening and weather resistant formula adjustment providing one stop raw material matching and technical guidance services for global injection molding manufacturers.
Conclusion
In short versatile PA6 GF30 glass fiber reinforced nylon integrates high strength high temperature resistance low shrinkage and insulation multiple advantages becoming the preferred metal replacement material in global manufacturing industry. With the continuous upgrading of downstream industry requirements high quality stable supplied PA6 GF30 modified materials will gain wider market application space.
Global purchasers who need bulk stable supply of industrial grade PA6 GF30 and other reinforced engineering plastics can cooperate with professional modified plastic manufacturers to obtain cost effective raw materials and full set molding technical support.
