Outdoor surveillance cameras deployed along traffic roadways, industrial parks, coastal sites, and public facilities are subjected to unforgiving environmental exposure. Security camera enclosures must continuously withstand intense ultraviolet (UV) radiation, severe diurnal temperature fluctuations, driving rain, atmospheric salt spray, and accidental physical impacts over multi-year operational lifespans.
When molded using standard ABS or lower-grade polymers, outdoor camera shells degrade rapidly. Solar photo-oxidation causes yellowing, surface chalking, color fading, and material embrittlement—compromising internal electronic protection and escalating field replacement costs for security equipment manufacturers.

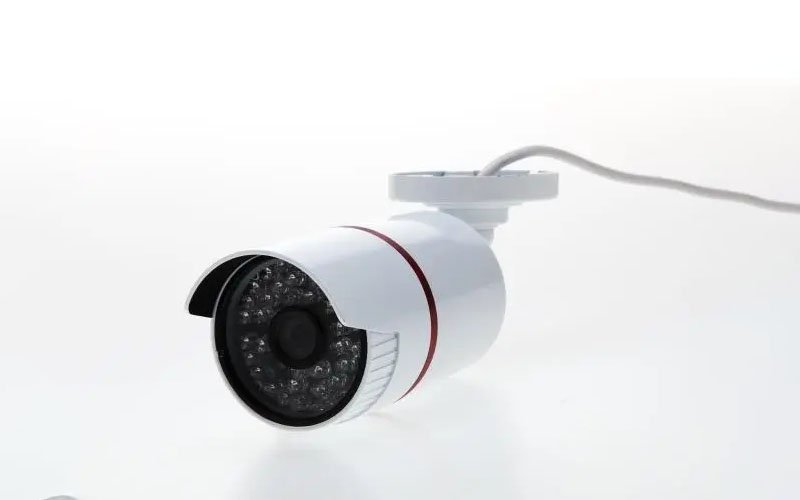

To address these critical material challenges, Qingdao Zhongxin Huamei Plastic Co., Ltd. supplies engineered weather resistant ASA resin, specifically designed for bullet cameras, dome cameras, PTZ camera housings, and exterior surveillance enclosures.
What Key Environmental Hazards Impact Outdoor Camera Housings?
Surveillance equipment manufacturers must meet rigorous durability standards for outdoor camera shells across diverse installation environments:
UV Radiation and Thermal Yellowing: Direct sunlight severs chemical bonds in standard plastics, leading to surface yellowing, loss of gloss, and unsightly color fading.
Impact Hazards and Structural Embrittlement: Outdoor housings face physical strikes from debris, hail, or maintenance accidents, requiring resilient impact toughness to protect sensitive internal lenses and circuit boards.
Corrosive Salt Spray and Acid Rain: Coastal marine humidity and industrial atmospheric pollution trigger surface pitting and premature chemical degradation on lower-grade polymer shells.
Thin-Wall Injection Molding Defects: Intricate camera shells with mounting snaps and internal ribbing demand optimized melt flow behavior to avoid shrinkage marks, surface blemishes, and high factory scrap rates.
Technical Advantages of Weather Resistant ASA Camera Compounds
Engineered weather resistant ASA resin features an acrylic rubber backbone that replaces vulnerable double bonds, delivering outstanding protection for exterior electronic enclosures:
Superior Anti-UV Color Stability ($\Delta E < 1.0$): Maintains a color difference ($\Delta E$) below 1.0 after a 168-hour Q-UV accelerated weathering test, ensuring long-term color uniformity without yellowing or surface chalking.
Balanced Impact Toughness and Mechanical Strength: Combines high tensile, flexural, and impact properties to absorb mechanical shocks, safeguarding internal optics and electronic modules against physical damage.
Acid Rain and Marine Salt Spray Resistance: Resists environmental stress cracking caused by high salinity in coastal regions and chemical pollutants in heavy industrial zones.
Higher Factory Yield Rates (+5%): Precision melt flow index fits complex thin-wall injection molds, eliminating surface pinholes and sink marks to boost molding yields by approximately 5%.
Full Spectrum Custom Color Matching: Supports custom color compounding in standard industry shades including polar white, slate gray, and matte black for bullet, dome, and speed dome surveillance designs.
Material Performance Comparison for Outdoor Camera Housings
| Performance Metric | Weather Resistant ASA Resin (Qingdao Zhongxin Huamei) | Commodity Unmodified ABS Compound | Standard PC/ABS Alloy |
| UV Resistance Mechanism | Inherent Anti-UV Acrylic Rubber | Poor (Double-Bond Degradation) | Moderate (Requires Heavy UV Package) |
| Color Delta ($\Delta E$) (168h Q-UV) | $< 1.0$ (High Color Retention) | $> 4.0$ (Severe Discoloration) | $> 2.5$ (Fading / Yellowing) |
| Injection Defect Rate | Low (Boosts Yields by ~5%) | Baseline | Moderate |
| Corrosion Resistance (Salt/Acid) | High (Coastal & Industrial Rated) | Low | Moderate |
| Paint Lamination Need | None Required (Paint-Free) | Required for Outdoor Use | Often Required for Outdoor Use |
Partner with Qingdao Zhongxin Huamei Plastic Co., Ltd.
Selecting a certified engineering plastic supplier requires verifying raw material compounding precision, automated color consistency, and batch-to-batch physical property stability. Established in May 1997 as an official joint venture enterprise backed by CHIMEI Corporation, Qingdao Zhongxin Huamei Plastic Co., Ltd. is a certified National High-Tech Enterprise with 30 years of custom compounding expertise.
Operating across a 45,000 m² modern manufacturing facility equipped with 30 automated granulating lines and an annual capacity exceeding 100,000 tons, our factory utilizes an automated digital MES process management system to monitor parameters and guarantee zero-defect batch consistency. We proudly serve leading manufacturers in the security surveillance, automotive, outdoor appliance, and communications industries.
In addition to weatherable ASA resins for surveillance camera enclosures, we supply prime general-purpose injection molding polymers including Chimei ABS PA-757Q for high-gloss, low-odor equipment covers and industrial enclosures. Contact our technical engineering team under FOB or EXW shipping terms to request technical datasheets, obtain custom color samples, and place trial evaluation orders.
