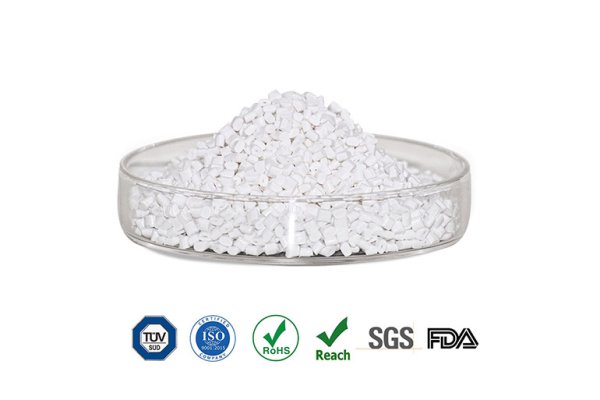

Compound Granule
Qingdao Zhongxin Huamei stays at the forefront of innovation, delivering one-stop plastic solutions for 5G, new energy, wearables, healthcare, appliances, and automotive industries.
Flame Retardant ABS
Flame Retardant ABS
Performance Advantages:
1. Customizable Flame-Retardant Ratings: 5VA, 5VB, V0, V1, V2, HB
2. V0 Class Flame Retardancy: Compliant at 1.5mm thickness | Self-extinguishing after flame removal
3. UL94 Certified
4. MES System: Monitors production process | Ensures 0 errors
Applied to household appliances such as refrigerators, washing machines, air conditioners, microwave ovens, vacuum cleaners, dishwashers, etc.
Product Details
| Physical properties table Flame retardant,heat resistant,impact resistant18 properties one-stop customization | |||||
| PHYSICAL PROPERTY TABLE | |||||
| ITEM | UNIT | STANDARD | FR-300 | FR-330 | FR-350 |
| Vertical combustion | mm | UL94 | 1.5mm V03.0mm V0 | 1.5mm V03.0mm V0 | 1.5mm V03.0mm V0 |
| Vicat softening point | 50N 50°C/h | ISO 306 | 85 | 90 | 100 |
| Density | g/cm³ | ISO 1183 | 1.16 | 1.165 | 1.17 |
| Melt Flow Rate (220°C,10kg) | g/10min | ISO 1133 | 45 | 35 | 20 |
| Tensile Strength | MPa | ISO 527-2 | 42 | 43 | 44 |
| Elongation at break | % | ISO 527-2 | 9 | 9 | 9 |
| Flexural Strength | MPa | ISO 178 | 65 | 66 | 68 |
| Flexural Module | MPa | ISO 178 | 2200 | 2250 | 2350 |
| Izod Notch impac | J/m | ASTM D256 | 260 | 286 | 220 |
| Charpy Notch Impact | KJ/m² | ISO 179-1 | 24 | 26 | 21 |
| Physical properties table Flame retardant,heat resistant,impact resistant18 properties one-stop customization | ||||
| PHYSICAL PROPERTY TABLE | ||||
| ITEM | UNIT | STANDARD | HM-1200 | |
| Vertical Flammability | / | UL94 | 1.5mmV03.0mmV0 | |
| VICAT | 50N 50°C/h | ISO 306 | 84 | |
| Heat Deflection Temp | 1.82MPa unannealed | ISO 75-2 | 73 | |
| 1.82MPa annealed | ISO 75-2 | 86 | ||
| Density | g/cm³ | ISO 1183 | 1.165 | |
| Melt Flow Rate (220°C,10kg) | g/10min | ISO 1133 | 45 | |
| Ensile Strength | MPa | ISO 527-2 | 42 | |
| Elongation At Break | % | ISO 527-2 | 9 | |
| Flexural Strength | MPa | ISO 178 | 65 | |
| Flexural Strength | MPa | ISO 178 | 2200 | |
| Notch Impact | Charpy | KJ/m³ | ISO 179-1 | 22 |
| Izod | J/m | ASTM D256 | 220 | |
