Polycarbonate PC
Qingdao Zhongxinhua Mei Plastic Co., Ltd. is a professional manufacturer of engineering plastic materials. You can order high-quality polyamide 6, paraformaldehyde, polycarbonate, polybutylene terephthalate and acrylonitrile butadiene styrene at favorable prices directly from our factory.
Product Name: Flame Retardant Glass Fiber PC
Type: Virgin / Reinforced
Color: Customizable (Natural, Black, etc.)
Form: Granule/Pellet
Filler: Glass Fiber (Customizable Content) + Flame Retardant System
Grade: Injection molding, extrusion molding etc.
Key Features & Advantages:
High mechanical strength & heat resistance
UL94 V0 flame retardant (1.5mm thickness)
Excellent toughness & surface finish
Ideal for industrial, electrical, automotive & aerospace components
Source Factory of Chi Mei Joint Venture with 30+ Years of Experience, Providing Free Samples.
Qingdao Zhongxinhuamei Glass Fiber Reinforced PC | Direct Factory Supply
Qingdao Zhongxinhuamei Plastic Co., Ltd. is a professional manufacturer of Glass Fiber Reinforced PC (GF-PC). You can source high-quality Glass Fiber PC at competitive prices directly from our factory. Glass Fiber PC is a specialty modified polycarbonate formulated with 10–40% glass fiber reinforcement, delivering core advantages of enhanced mechanical strength, dimensional stability, and heat resistance.
| Glass Fiber PC Physical properties table Flame retardant,heat resistant,impact resistant18 properties one-stop customization | ||||||||
| PHYSICAL PROPERTY TABLE | ||||||||
| ITEM | UNIT | STANDARD | TEST CONDITION | FRPC-1 | FRPC-2 | FRPC-3 | FRPC-4 | FRPC-5 |
| Density | g/cm³ | ISO 1183 | 23°C | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Melt Flow Rate | cm³/10min | ISO 1133 | 300°C/1.2kg | 20 | 19 | 10 | 10 | 15 |
| Shrinkage | % | ISO 2577 | - | 0.5-0.7 | 0.5-0.7 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Rockwell hardness | R-Scale | ISO 2039-2 | 45659 | 120 | 120 | 122 | 123 | 122 |
| Tensile strength | MPa | ISO 527 | 50mm/min | 62 | 60 | 70 | 65 | 65 |
| Elongation | % | ISO 527 | 50mm/min | 100 | 70 | 120 | 120 | 110 |
| Flexural Strength | MPa | ISO 178 | 2mm/min | 90 | 90 | 90 | 90 | 85 |
| Flexural Modulus | GPa | ISO 178 | 2mm/min | 2.4 | 2.5 | 2.3 | 2.3 | 2.4 |
| Notched impact strength | KJ/m² | ISO 180 | Notched,23°C | 70 | 55 | 70 | 70 | 50 |
| Heat Deflection temperature | °C | ISO 75-2 | 1.8kg,120°C/hr (unannealed) | 104 | 88 | 125 | 25 | 115 |
| Softening point temperature | °C | ISO 306 | 1kg,50°C/min (unannealed) | 125 | 110 | 150 | 150 | 148 |
| Combustion grade | - | UL-96 | - | 0.6mmV0 | 0.8mmV0 | 1.0mmV0 | 2.5mmV0 | 3mmV0灼热丝850°C,1.5mm |
| Drying temperature | °C | - | - | 100-105 | 85-90 | 120 | 120 | 110 |
| Drying time | Hrs | - | - | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 |
| Cylinder temperature | °C | - | - | 260-280 | 250-270 | 280-310 | 280-310 | 260-280 |
| Mold Temperature | °C | - | - | 70-100 | 70-100 | 70-100 | 70-100 | 70-100 |
Glass Fiber PC Grade
High-Flow Injection Molding Grade / Extrusion Grade (customizable)

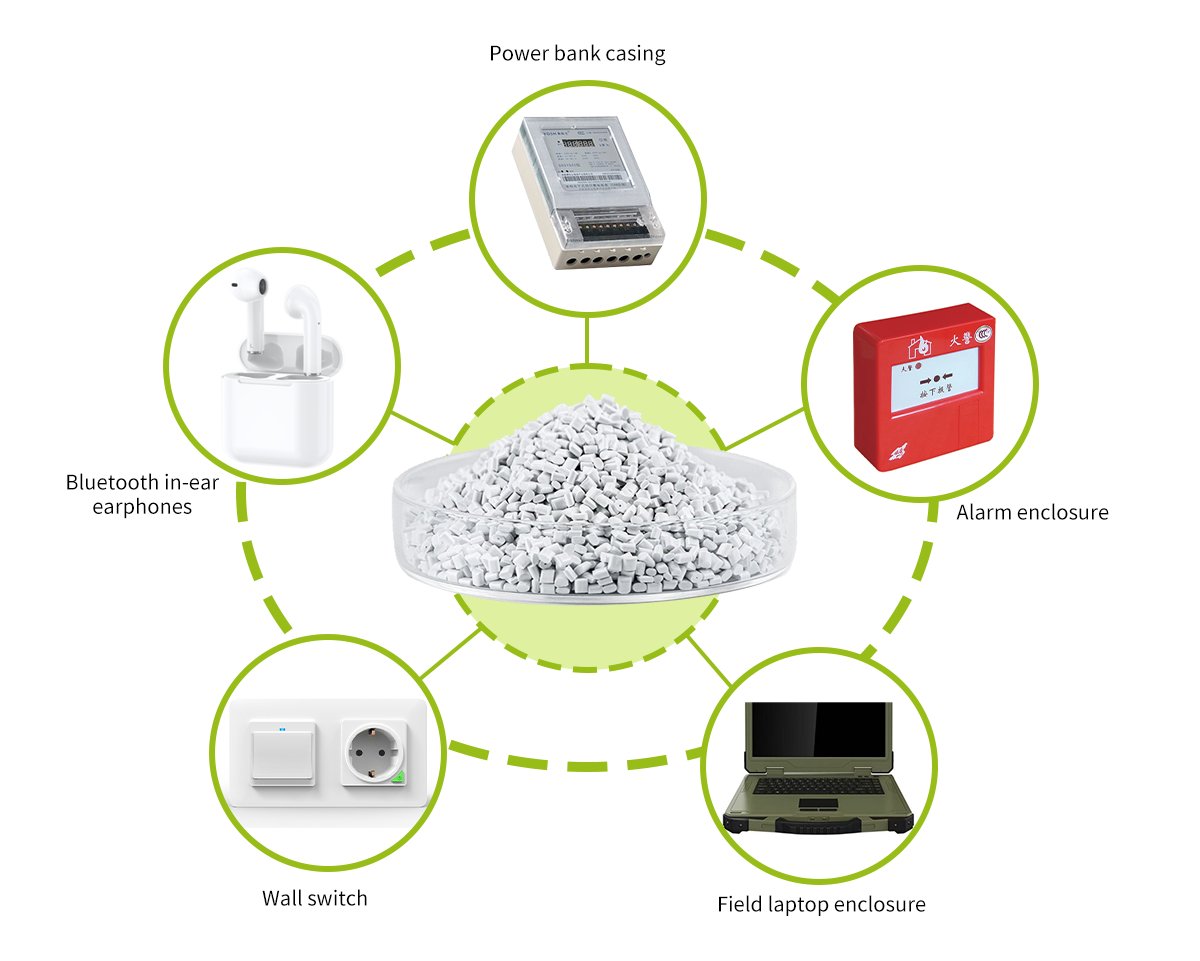

Glass Fiber PC Applications
Tailored for automotive structural components, electronic device housings, LED lighting parts, precision instrument casings, and high-strength industrial components requiring dimensional stability.
Glass Fiber PC Core Features
High tensile & flexural strength (improved by 30–100% vs. pure PC)
Excellent dimensional stability with low shrinkage
Outstanding heat resistance (HDT elevated by 20–50°C)
Retains good impact resistance and electrical insulation
Compatible with standard PC processing methods
Need more details? Click here to get price table!
GF-PC | Glass Fiber Reinforced PC | PC-GF10/GF20/GF30/GF40
As a CHIMEI joint venture, we boast 30 years of rich industry experience in plastic materials manufacturing, with a strong focus on high-performance composites like Glass Fiber Reinforced PC.
Our professional R&D team and advanced imported testing equipment ensure top-tier quality and technical support for products including Glass Fiber PC and other engineered plastics.
If you would like to know other articles related to modified PC？ （ Low-Temperature Flame-Retardant PC for Fire Helmets）Click here

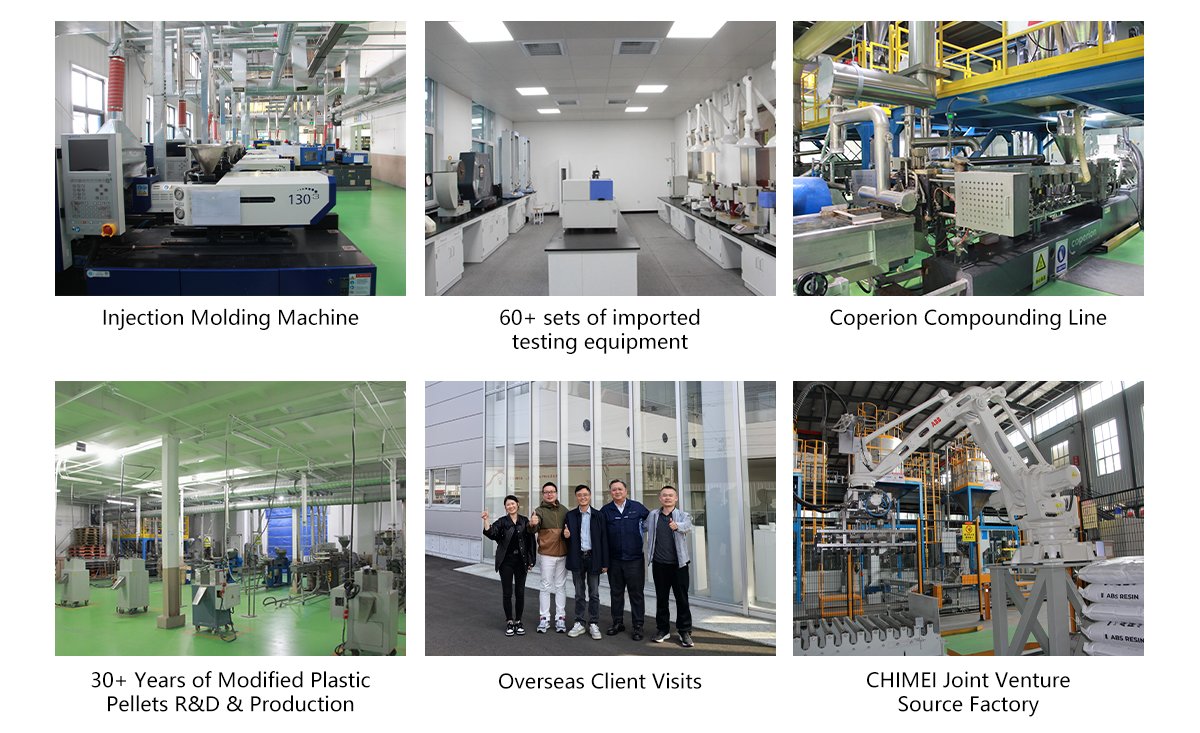

（R&D and Testing Laboratory of Qingdao Zhongxin Huamei Plastics Co., Ltd.）
As a direct manufacturer of specialty materials like Glass Fiber PC, we cut out middlemen to offer you discounted pricing. Discover more details about Glass Fiber PC and request free samples—click here!
