AS 30% GF Granules price in China factory

AS Plastic Resin

Qingdao Zhongxinhua Mei Plastic Co., Ltd. is a professional manufacturer of engineering plastic materials. You can order high-quality polyamide 6, paraformaldehyde, polycarbonate, polybutylene terephthalate and acrylonitrile butadiene styrene at favorable prices directly from our factory.

Product Details

What is AS GF30 Plastic Material?

What is AS GF30 Plastic Material?

AS GF30 Plastic Resin is crafted with utmost precision to deliver exceptional strength and reliable performance, establishing itself as the ideal material choice for manufacturers pursuing top-tier quality solutions.

Formulated with a robust composition, this modified plastic resin ensures outstanding product longevity, empowering your end products to withstand the test of time and rigorous operating conditions.

AS GF30 (30% Glass Fiber Reinforced AS)
 Typical Properties
tem)Test MethodTest(Units)HM-ASGF30(1)HM-ASGF30(2)HM-ASGF35
DensityISO 118323℃g/cm³1.291.31.35
Melt Flow RateISO 1133220℃,10kgg/10min101010
ShrinkageHM method23℃%0.2-0.60.2-0.50.2-0.6
Tensile StrengthISO 52750mm/minMPa130130130
Elongation at breakISO 52750mm/min%1.31.31.3
Flexural StrengthISO 1782.0mm/minMPa160160160
Flexural ModuleISO 1782.0mm/minMPa9500950010500
HDTISO 75-21.8MPa℃103103103
Charpy Impact StrengthISO 17923℃KJ/m²6.2-7
Izod Impact Strength, notchedISO 18023℃KJ/m²6.66.6-
Flame retardancyUL-941.5mmClassHB-HB
Features---High-Strength, High-Impact & Heat-Resistant Injection Molding Resin (RoHS Compliant)
Application---Cross-Flow Fan Blades
(Tangential Fan),Axial Fan Blades Centrifugal Fan Impellers(Centrifugal Fans)


Specialized Applications for AS GF30 & Related Composites

Moreover, AS GF30 Plastic Resin is engineered to produce visually appealing outer shells for household appliances. Its sleek, professional finish elevates your product’s overall aesthetics while forming a robust protective barrier against scratches, UV radiation, and daily wear-and-tear.

画板 5 拷贝 2

AS GF30Key Features & Advantages:

  • 30% Glass Fiber Reinforcement: Significantly enhances tensile strength, high rigidity, and mechanical durability, preventing deformation under load.

  • Outstanding Dimensional Stability: Ensures tight manufacturing tolerances and low shrinkage rate, making AS GF30 Plastic Resin ideal for high-precision components.

  • Superior Environmental & Chemical Resistance: Features built-in weather resistance, heat resistance, oil resistance, and broad chemical stability to ensure long-lasting performance in harsh conditions.

  • Aesthetic Surface Finish: Produces a sleek, high-grade surface appearance suitable for household appliance outer shells, combining structural integrity with premium aesthetics.

  • Full Regulatory Compliance: Fully compliant with RoHS environmental standards, ensuring safe and eco-friendly manufacturing for global export.

 AS GF30 Plastic Material

AS GF30 Plastic Resin stands as a high-caliber material solution, meticulously formulated to elevate the performance and extend the service life of diverse end products. Tailor-made for applications demanding robust performance—such as cross flow fan components and household appliance outer shells—this professional-grade plastic resin is the top pick for manufacturers pursuing uncompromising material quality.

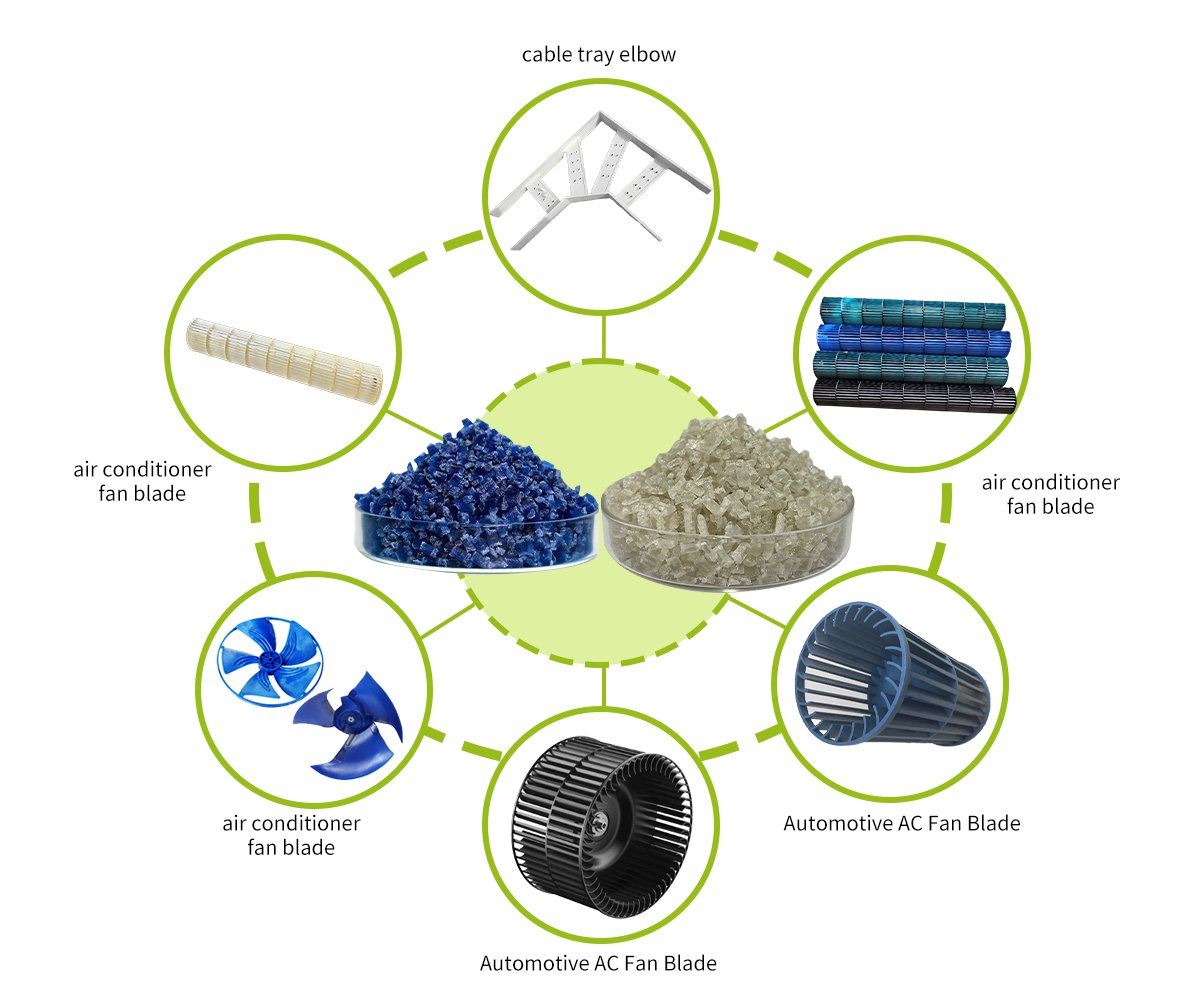

AS GF30 Primary Applications:

  • Cross Flow Fans: Optimized for high-speed rotational balance, heat resistance, and structural integrity in air conditioning units and ventilation systems.

  • Household Appliance Outer Shells: Delivers an aesthetically pleasing outer casing, protective durability, and weather resistance for home appliances.

  • Outdoor Building Materials & Components: Withstands environmental exposure without compromising mechanical reliability or long-term durability.

Online Factory Inspection
Plastic Granules R&D Site
Plastic Granules R&D Site

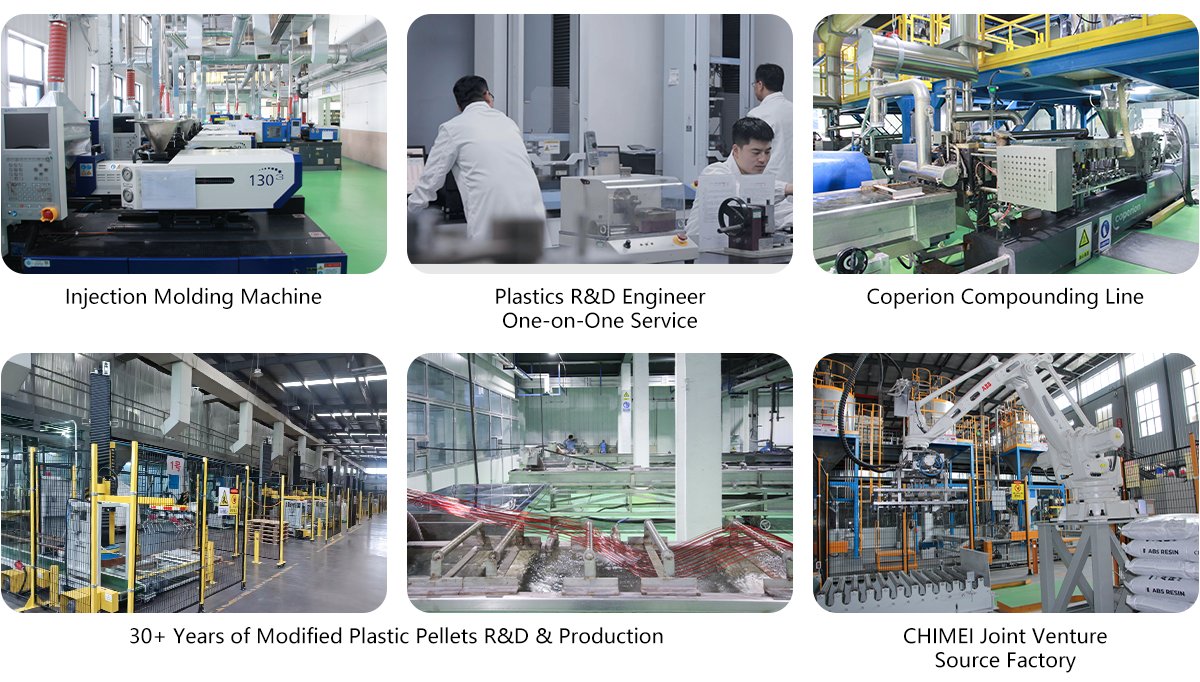

Plastic Granules Production Site
Plastic Granules Production Site

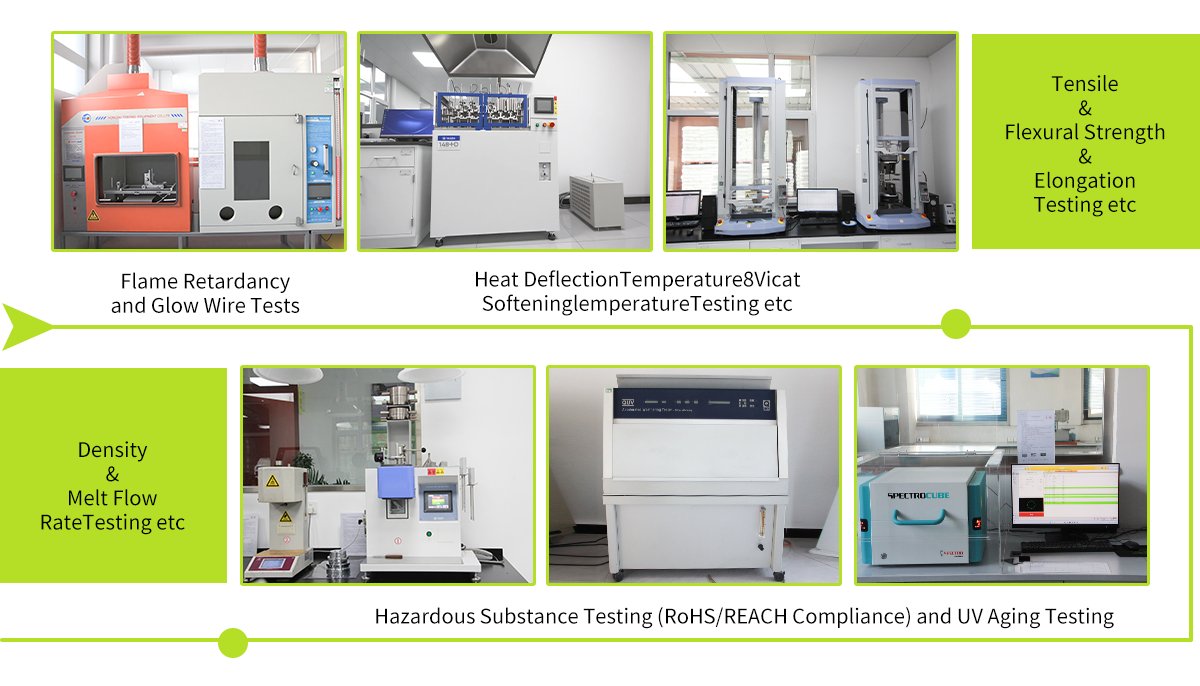

Quality Inspection Site
Quality Inspection Site
Storehouse
Storehouse
Plastic Granules Shipping Site
Plastic Granules Shipping Site

Qingdao Zhongxin Huamei Plastic Co., Ltd.'s plastic pellets hold authoritative certifications (UL, SGS, FDA), meet key EU standards (ROHS, REACH) for global market compliance, and boast 4 national invention patents plus 11 utility model patents—proving strong R&D capabilities.Click here for more details.

Manufactured in strict accordance with the highest industry benchmarks, AS GF30 Plastic Resin ensures consistent quality and full compliance with technical specifications. Its remarkable durability helps end products exceed customer expectations, driving higher levels of customer satisfaction and fostering long-term brand loyalty.

Qingdao Zhongxin Huamei Plastic Co., Ltd.'

Why Choose Our AS GF Material?

  • 25 Years of Proven Formulation: Developed by our expert R&D team ("Cao Gong" and specialists), ensuring exceptional batch-to-batch stability and optimized processing windows for injection molders.

  • Global Appliance Tier-1 Supplier: Proudly trusted by top-tier global home appliance manufacturers, including long-term supply partnerships with Gree and Haier's overseas production plants in Pakistan.

  • Excellent Mechanical Properties: Outstanding tensile strength, high heat deflection temperature (HDT), and low shrinkage, making it ideal for structural and structural-aesthetic parts.

As a source factory jointly invested with CHIMEI, we rely on Chimei’s CNAS-accredited laboratory and boast over 30 years of experience in R&D and production of modified plastics. The color and performance of our plastic granules can be customized according to customer requirements.


AS GF30 Plastic Material


We offer customized packaging solutions tailored to your specific needs. Click here to claim your samples and material data sheets now.more about our plastic granules.

Inquiry
Cooperation Cases
Case 2

√ Client:Premier Spanish automotive injection molding manufacturer

√ Position:Core supplier to international Tier-1 automotive OEMs (BMW, Volkswagen, etc.)

√ Application:Automotive parts production

√ Material type:PP+EPDM+TD、 glass fiber reinforced PP

√ Critical Performance Metrics:Color consistency guaranteed at ΔE < 0.2、Batch-to-batch performance stability
