AS Plastic Resin
Qingdao Zhongxinhua Mei Plastic Co., Ltd. is a professional manufacturer of engineering plastic materials. You can order high-quality polyamide 6, paraformaldehyde, polycarbonate, polybutylene terephthalate and acrylonitrile butadiene styrene at favorable prices directly from our factory.
AS GF20 Plastic Resin Key Advantages Injection Grade, 20% Glass Fiber Reinforced
Glass Fiber Content: 20%-50% Customizable
Injection Grade, 20% Glass Fiber Reinforced, Stable Mechanical Performance, Factory Direct
Applications
AS GF20 Plastic Raw Material for Central Air-Condition Chillers Tubular Blades. Perfect for cross fan indoor
PS：We can provide you with free AS GF30 Plastic Resin samples for evaluation and test, please feel free to contact us
What is AS GF20 Plastic Material?
In the plastics industry, AS GF20 typically refers to Acrylonitrile Styrene (often known as SAN) reinforced with 20% glass fiber by weight
Why Choose Our AS GF Material?
25 Years of Proven Formulation: Developed by our expert R&D team ("Cao Gong" and specialists), ensuring exceptional batch-to-batch stability and optimized processing windows for injection molders.
Global Appliance Tier-1 Supplier: Proudly trusted by top-tier global home appliance manufacturers, including long-term supply partnerships with Gree and Haier's overseas production plants in Pakistan.
Excellent Mechanical Properties: Outstanding tensile strength, high heat deflection temperature (HDT), and low shrinkage, making it ideal for structural and structural-aesthetic parts.
| AS GF20 (20% Glass Fiber Reinforced AS) Typical Properties | ||||||
| tem) | Test Method | Test | (Units) | HM-ASGF30(1) | HM-ASGF30(2) | HM-ASGF35 |
| Density | ISO 1183 | 23℃ | g/cm³ | 1.29 | 1.3 | 1.35 |
| Melt Flow Rate | ISO 1133 | 220℃,10kg | g/10min | 10 | 10 | 10 |
| Shrinkage | HM method | 23℃ | % | 0.2-0.6 | 0.2-0.5 | 0.2-0.6 |
| Tensile Strength | ISO 527 | 50mm/min | MPa | 130 | 130 | 130 |
| Elongation at break | ISO 527 | 50mm/min | % | 1.3 | 1.3 | 1.3 |
| Flexural Strength | ISO 178 | 2.0mm/min | MPa | 160 | 160 | 160 |
| Flexural Module | ISO 178 | 2.0mm/min | MPa | 9500 | 9500 | 10500 |
| HDT | ISO 75-2 | 1.8MPa | ℃ | 103 | 103 | 103 |
| Charpy Impact Strength | ISO 179 | 23℃ | KJ/m² | 6.2 | - | 7 |
| Izod Impact Strength, notched | ISO 180 | 23℃ | KJ/m² | 6.6 | 6.6 | - |
| Flame retardancy | UL-94 | 1.5mm | Class | HB | - | HB |
| Features | - | - | - | High-Strength, High-Impact & Heat-Resistant Injection Molding Resin (RoHS Compliant) | ||
| Application | - | - | - | Cross-Flow Fan Blades (Tangential Fan),Axial Fan Blades Centrifugal Fan Impellers(Centrifugal Fans) | ||
Leveraging30+years of proven, mature formulation expertise, Qingdao Zhongxin Huamei Plastic Co., Ltd. offers high-performance Glass Fiber Reinforced AS (SAN) Compounds (AS GF20 - GF50). Specially engineered for the demanding home appliance industry, our material balances high rigidity, excellent dimensional stability, and superior surface finish.
We provide fully customizable solutions with glass fiber content ranging from 20% to 50% to meet your specific injection molding requirements.

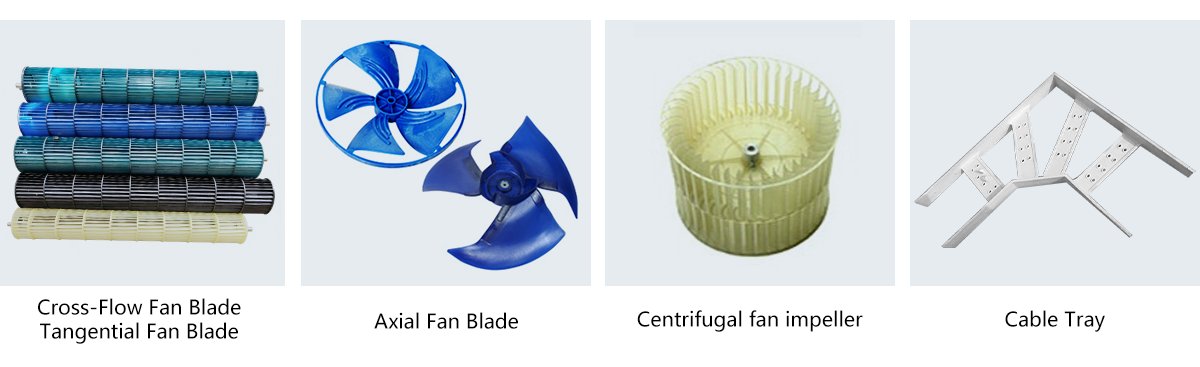

Specialized Applications for AS GF20 & Related Composites
Our AS GF20 and 20% glass fiber reinforced polymer family provide a critical balance of structural support and weight reduction across multiple industries
Home Appliances: Air conditioner cross-flow fan blades, washing machine components, and refrigerator structural parts
. Equipment Housings: Precision electronic instrument shells, industrial control equipment casings, and durable enclosures
. Automotive & Tools: Under-the-hood automotive structural elements, power tool housings, and automotive interior trims (via our PA GF20 or PC+ABS GF20 grades)
.
Qingdao Zhongxin Huamei Plastic Co., Ltd.'s plastic pellets hold authoritative certifications (UL, SGS, FDA), meet key EU standards (ROHS, REACH) for global market compliance, and boast 4 national invention patents plus 11 utility model patents—proving strong R&D capabilities.Click here for more details.
As a direct manufacturer of specialty materials like AS GF20 Plastic Material, we cut out middlemen to offer you discounted pricing. Discover more details about AS GF20 Plastic Material and request free samples—click here!
Contact Us for Quotation:
Email: info@qdzxhm.com.cn
Website: www.qdzxhm.net
Contact us: +8618765279757 (WeChat/Whatsapp)
As a source factory jointly invested with CHIMEI, we rely on Chimei’s CNAS-accredited laboratory and boast over 30 years of experience in R&D and production of modified plastics. The color and performance of our plastic granules can be customized according to customer requirements.
We offer customized packaging solutions tailored to your specific needs. Click here to claim your samples and material data sheets now.more about our plastic granules.
√ Client：Premier Spanish automotive injection molding manufacturer
√ Position：Core supplier to international Tier-1 automotive OEMs (BMW, Volkswagen, etc.)
√ Application：Automotive parts production
√ Material type：PP+EPDM+TD、 glass fiber reinforced PP
√ Critical Performance Metrics：Color consistency guaranteed at ΔE < 0.2、Batch-to-batch performance stability
