Acrylonitrile Butadiene Styrene (ABS) is a common thermoplastic polymer widely used in manufacturing and consumer products
Acrylonitrile Butadiene Styrene (ABS) is a widely-used thermoplastic polymer extensively applied in industrial manufacturing and consumer goods. Below is a detailed breakdown of its components and properties: Composition & Structure Acrylonitrile → Delivers excellent chemical resistance, thermal stability, and structural strength. Butadiene → Imparts superior toughness and impact resistance, particularly effective even in low-temperature environments. Styrene → Endows the material with rigidity, enhanced processability, and a smooth, glossy surface finish. Polymerization of these three monomers produces ABS, resulting in a versatile material that achieves an optimal balance of strength, durability, and ease of processing.
Infrared penetration of ABS plastic granuels
ABS transparent infrared plastic Performance Advantages:
1. High IR Transmittance: ≥90% (700nm-2000nm range); 93% at 940nm, 91% at 850nm

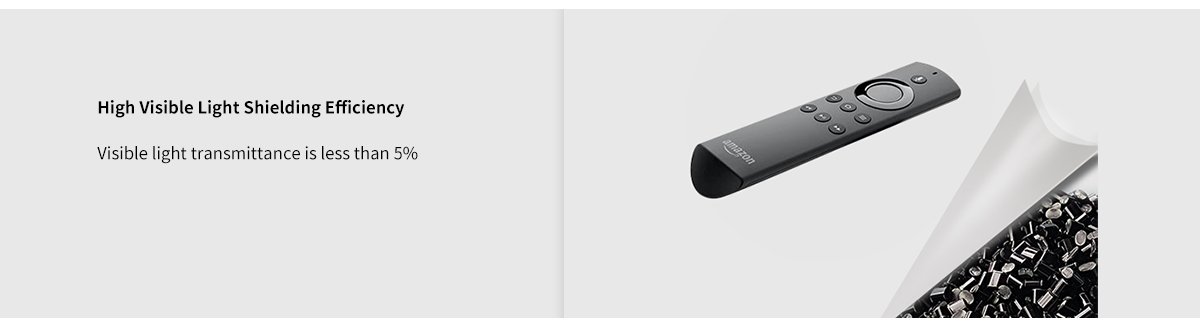

2. High Visible Light Shielding: Transmittance <5%
3. Controllable R/G/B Specific Wavelength Transmittance | Meets Functional Requirements
4. MES System: Monitors production process | Ensures 0 errors
5. Certifications: ISO, SGS, ROHS, CO, CTI,FTA

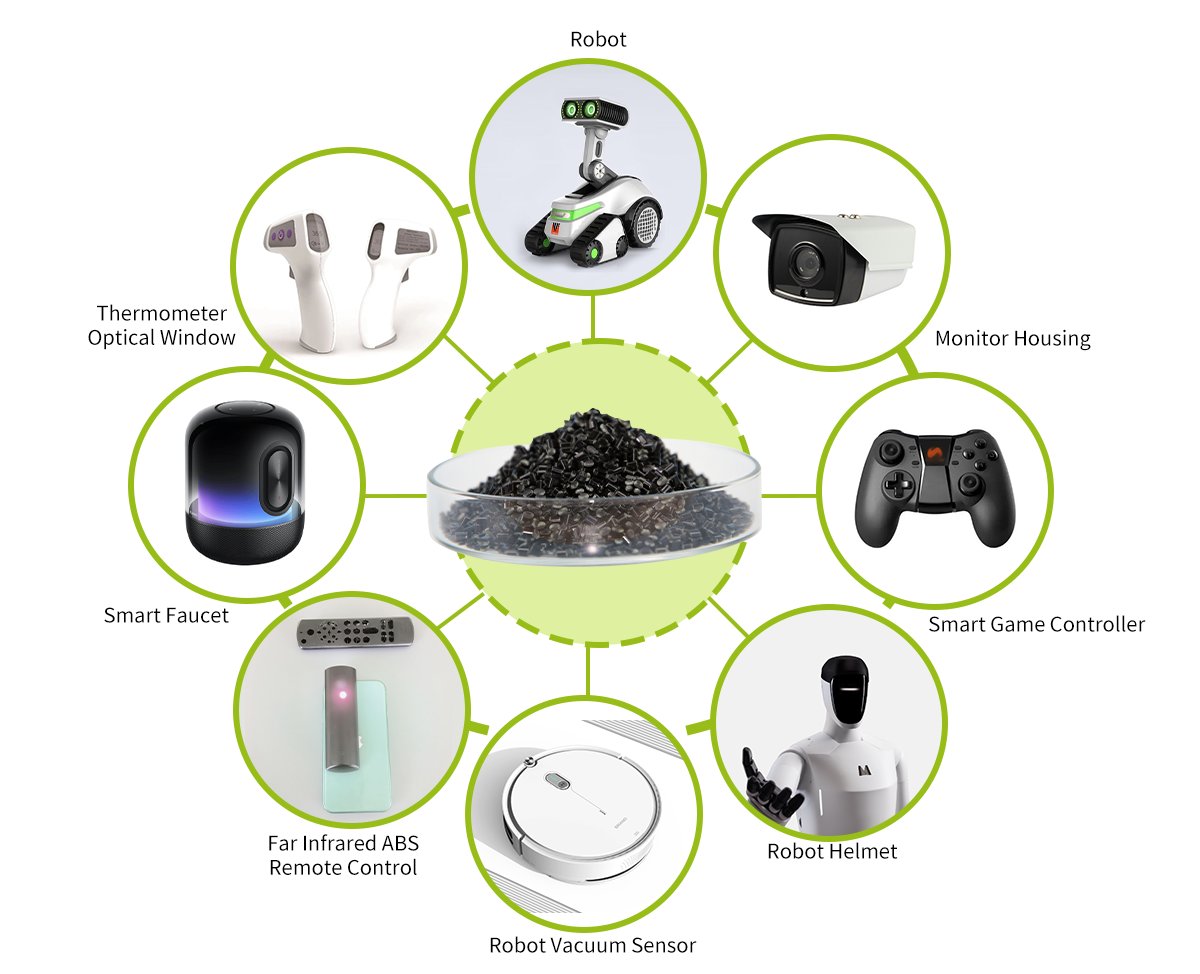

infrared-transparent-compounds Applied to products such as smart home devices, smart speakers, remote controls, smart game controllers, lamp covers, etc.
PS：We can provide you with free samples for evaluation and test, please feel free to contact us

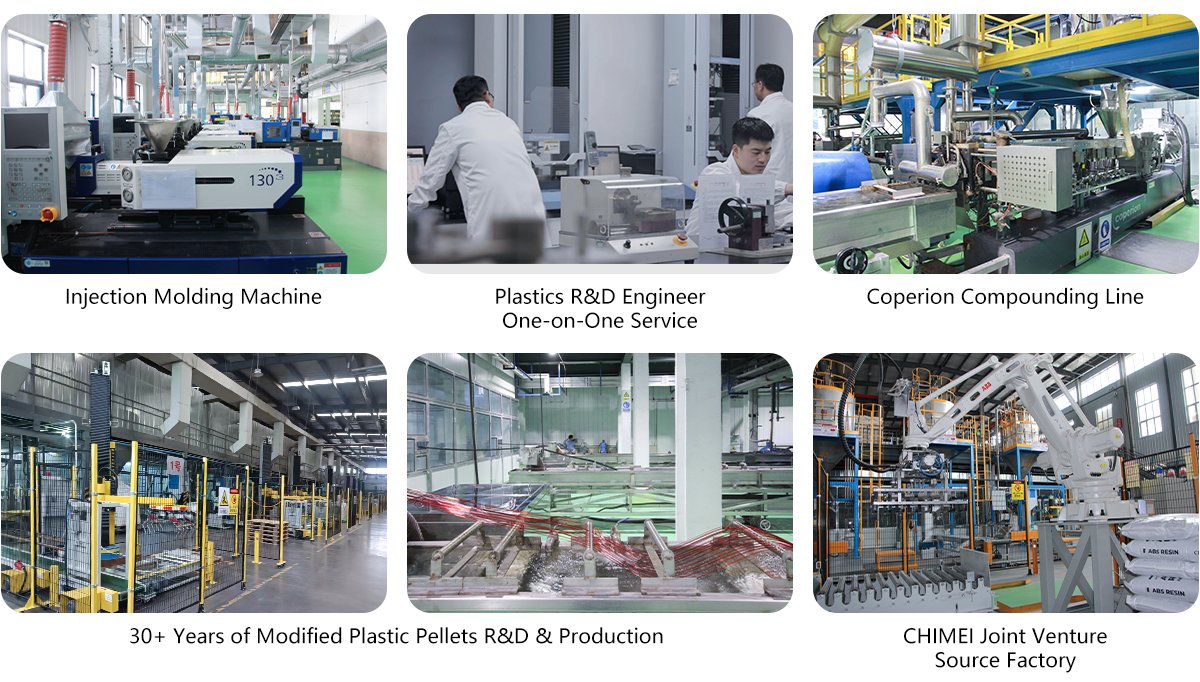

Welcome to wholesale the high quality infrared-transparent-compounds made in China from our factory. We are a 30+ year-old factory joint-ventured with CHIMEI. As one of the leading infrared-transparent-compounds manufacturers and suppliers in China, we are equipped with advanced equipment and technology. Please be free to get the customized infrared-transparent-compounds from us.
| Physical properties table Flame retardant,heat resistant,impact resistant18 properties one-stop customization | |||
| Infrared transparent compounds PHYSICAL PROPERTY TABLE | |||
| ITEM | UNIT | TEST RESULTS | STANDARD |
| Melt Flow Rate (220°C,10kg) | g/10min | 21.5 | ISO 1133 |
| Density | g/cm³ | 1.102 | ISO 1183 |
| Tensile Strength | MPa | 50 | ISO 527-2 |
| Elongation At Break | % | 12 | ISO 527-2 |
| Flexural Strength | MPa | 73 | ISO 178 |
| Flexural Module | MPa | 2200 | ISO 178 |
| Charpy Notch Impact | KJ/m² | 8 | ISO 179-1 |
| Izod Notch impact | KJ/m² | 9 | ISO 180 |
| Infrared Transmittance | % | 92 | / |
What Are the Advantages of Infrared Transparent ABS?
Integrated Aesthetics & Functional Protection Infrared transparent ABS incorporates infrared-active penetrating polymers, endowing opaque plastic components with reliable infrared light penetration capabilities. This unique feature allows infrared electronic devices to be seamlessly concealed inside the plastic parts, not only elevating the overall aesthetic appeal of end products but also providing robust protection for internal infrared-sensitive components.
Superior Signal Transmission Performance Infrared transparent ABS boasts exceptional infrared transmittance, enabling high-efficiency transmission of infrared signals. This ensures stable communication between remote controls and their paired devices, significantly reducing signal interference and bit error rates. In turn, it enhances both the operational precision and long-term reliability of remote control systems.
Outstanding Structural Durability Infrared transparent ABS itself possesses impressive impact resistance and sturdiness. It can effectively shield the internal electronic components of remote controls from external shocks and damage. Thanks to these robust mechanical properties, the remote control housings made of infrared transparent ABS are not prone to deformation, cracking or breakage during daily use, ensuring a longer service life.
This remote control housing is crafted from infrared transparent ABS material manufactured by ZhongxinhuaMei. Boasting remarkable infrared transmission performance, it achieves over 90% transmittance across the 700–2000nm wavelength range, with a peak transmittance of 94% at 940nm and 91% at 850nm.
What’s more, this infrared transparent ABS features high-efficiency visible light shielding, with a visible light transmittance of less than 5%. It can effectively conceal the internal circuit components of the device, enhancing the sleek, seamless aesthetics of the finished product. Thanks to these outstanding properties, this infrared transparent ABS material is widely utilized across diverse sectors including automotive, home appliances and electronic equipment industries.
Qingdao Zhongxin Huamei Plastic Co., Ltd. is a professional manufacturer specializing in modified plastics and dyed plastics, integrating independent R&D, customized design, large-scale production and manufacturing, as well as one-stop technical support services. We deliver tailored plastic material solutions catering to a wide array of high-growth sectors, including 5G communications, new energy, smart wearable devices, household appliances, medical equipment and automotive manufacturing.
For more detailed information about specialized products such as infrared transparent PC and infrared transparent ABS, feel free to bookmark our official website for easy access to the latest product specs and application cases.
In conclusion, infrared penetrating PC material boasts superior performance in infrared transmission compared to infrared penetrating ABS material, making it ideal for scenarios demanding higher levels of infrared transmittance. On the other hand, infrared penetrating ABS material is better suited for applications that prioritize mechanical strengths such as structural rigidity, wear resistance and chemical resistance.
When selecting the right material for a specific product, it is essential to evaluate the material’s infrared performance, physical characteristics and required mechanical properties in light of actual application needs, so as to ensure the optimal material option is chosen.
√ Client：Premier Spanish automotive injection molding manufacturer
√ Position：Core supplier to international Tier-1 automotive OEMs (BMW, Volkswagen, etc.)
√ Application：Automotive parts production
√ Material type：PP+EPDM+TD、 glass fiber reinforced PP
√ Critical Performance Metrics：Color consistency guaranteed at ΔE < 0.2、Batch-to-batch performance stability
