Acrylonitrile Butadiene Styrene (ABS) is a common thermoplastic polymer widely used in manufacturing and consumer products
Acrylonitrile Butadiene Styrene (ABS) is a widely-used thermoplastic polymer extensively applied in industrial manufacturing and consumer goods. Below is a detailed breakdown of its components and properties: Composition & Structure Acrylonitrile → Delivers excellent chemical resistance, thermal stability, and structural strength. Butadiene → Imparts superior toughness and impact resistance, particularly effective even in low-temperature environments. Styrene → Endows the material with rigidity, enhanced processability, and a smooth, glossy surface finish. Polymerization of these three monomers produces ABS, resulting in a versatile material that achieves an optimal balance of strength, durability, and ease of processing.
Abs Glass Fiber Reinforced 30% Raw Material
Performance Advantages:
1. Low surface fiber floating + pure base color

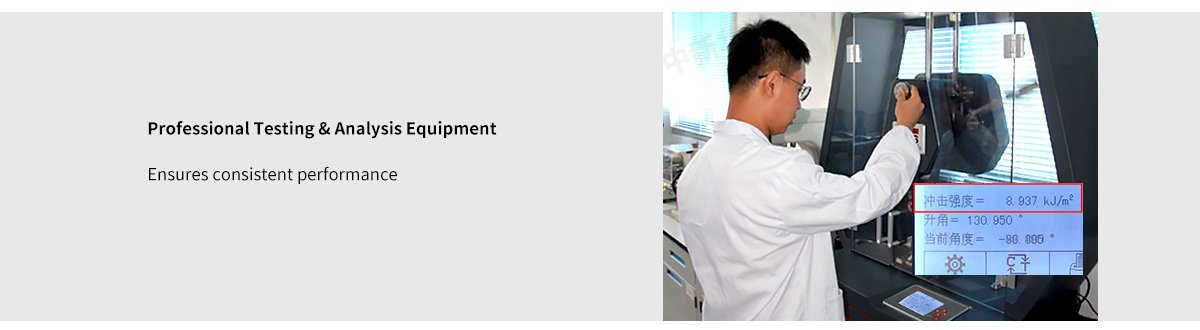

2. Excellent impact performance: Professional testing & analysis instruments ensure stable performance
3. MES System: Monitors production process | Ensures 0 errors
4. Stable performance: Yield rate increased by ~5%

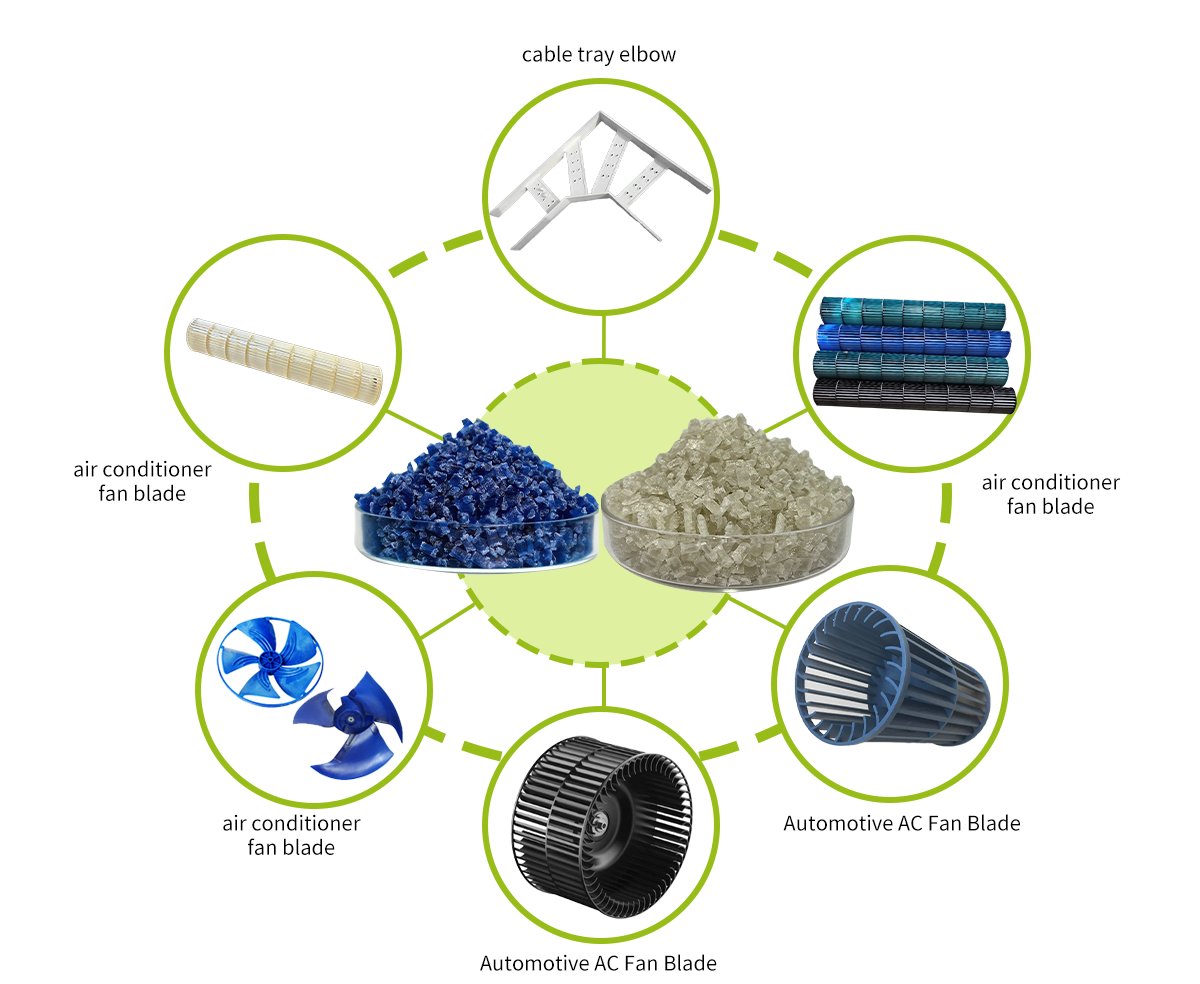

Applied to household appliances such as refrigerators, washing machines, Air Conditioner Fan Blades, microwave ovens, vacuum cleaners, dishwashers, etc.
PS：We can provide you with free samples for evaluation and test, please feel free to contact us
Welcome to wholesale the high quality ABS Glass fiber compound material made in China from our factory. We are a 30+ year-old factory joint-ventured with CHIMEI. As one of the leading manufacturers and suppliers in China, we are equipped with advanced equipment and technology. Please be free to get the customized products
from us.
The glass fiber-reinforced ABS material launched by Qingdao Zhongxin Huamei Plastic Co., Ltd. is a modified plastic product with excellent comprehensive performance and wide applicability.
ABS GF30 is a type of ABS (Acrylonitrile Butadiene Styrene) plastic with 30% glass fiber reinforced, Some key properties of ABS GF30.
Glass fiber is an extremely common material in the chemical industry, often utilized to produce reinforced plastic or reinforced rubber. It possesses properties such as temperature resistance, flame retardancy, corrosion resistance, heat insulation, high tensile strength, and excellent electrical insulation.
| Physical properties table Flame retardant,heat resistant,impact resistant18 properties one-stop customization | |||||
| PHYSICAL PROPERTY TABLE | |||||
| ITEM | UNIT | STANDARD | ABS G15 | ABS G20 | ABS G30 |
| Tensile Strength | MPa | ISO 527-2 | 80 | 85 | 95 |
| Elongation at break | % | ISO 527-2 | - | - | - |
| Flexural Strength | MPa | ISO 178 | 110 | 120 | 135 |
| Flexural Module | MPa | ISO 178 | 4500 | 5000 | 7000 |
| Charpy NotchImpact | KJ/m² | ISO 179-1 | 10 | 10 | 9 |
| Density | g/cm³ | ISO 1183 | 1.16 | 1.19 | 1.29 |
| Heat distortion temperature | °C | ISO 75 | 95 | 100 | 100 |
By incorporating glass fiber into the masterbatch (a core modification technology of Qingdao Zhongxin Huamei), the heat resistance and mechanical strength of the material can be significantly improved.
By compounding ABS with glass fiber through precise modification processes, Qingdao Zhongxin Huamei effectively enhances the thermal deformation temperature and mechanical properties of the product, while reducing the mold shrinkage rate and linear expansion coefficient.
Although the impact strength of glass fiber-reinforced ABS is slightly lower than that of pure ABS, its rigidity, heat resistance, and dimensional stability are notably improved. In addition, this glass fiber-reinforced ABS by Qingdao Zhongxin Huamei is highly cost-effective, which can meet producers’ performance requirements while helping them cut production costs.
ABS-GF compound is a combination of ABS resin, glass fiber, and suitable additives
ABS, or Acrylonitrile Butadiene Styrene, is a thermoplastic polymer known for its toughness, impact resistance,and heat resistance.
Heat resistance: ABS GF30 exhibits excellent heat resistance, allowing it to withstand high temperatures without losing its structural integrity.
Dimensional stability: ABS GF30 maintains its shape and size even under extreme conditions, ensuring consistency in manufacturing processes.

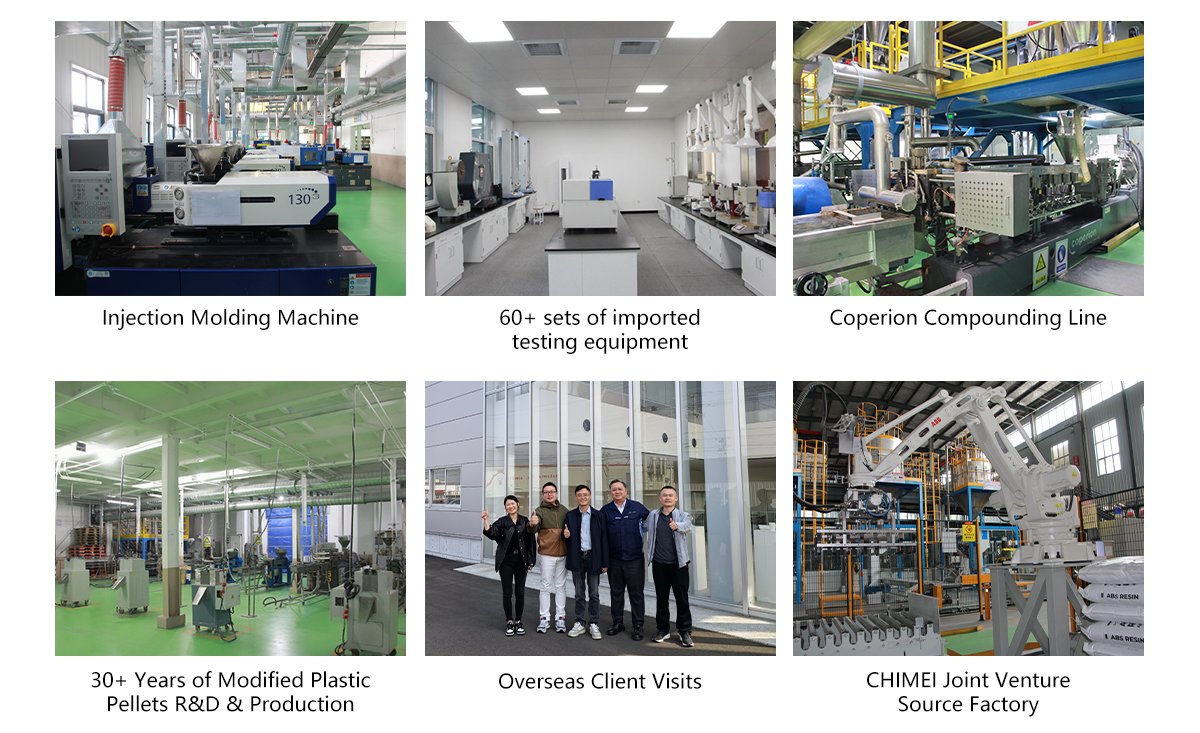

As a source factory jointly invested with CHIMEI, we rely on CHIMEI’s CNAS-accredited laboratory and boast over 30 years of experience in R&D and production of modified plastics. The color and performance of our plastic granules can be customized according to customer requirements.
We offer customized packaging solutions tailored to your specific needs. Click here to claim your samples and material data sheets now more about our plastic granules.
√ Client：Premier Spanish automotive injection molding manufacturer
√ Position：Core supplier to international Tier-1 automotive OEMs (BMW, Volkswagen, etc.)
√ Application：Automotive parts production
√ Material type：PP+EPDM+TD、 glass fiber reinforced PP
√ Critical Performance Metrics：Color consistency guaranteed at ΔE < 0.2、Batch-to-batch performance stability
