Compound Granule
Qingdao Zhongxin Huamei stays at the forefront of innovation, delivering one-stop plastic solutions for 5G, new energy, wearables, healthcare, appliances, and automotive industries.
Flame Retardant ABS
Flame Retardant ABS FR V0 Resin Granules Performance Advantages:
1. Customizable Flame-Retardant Ratings: 5VA, 5VB, V0, V1, V2, HB
2. V0 Class Flame Retardancy: Compliant at 1.5mm thickness | Self-extinguishing after flame removal
3. UL94 Certified
4. Source Factory of Chi Mei Joint Venture with 30+Years of Experience, Providing Free Samples
Applied to household appliances such as refrigerators, washing machines, air conditioners, microwave ovens, vacuum cleaners, dishwashers, etc.
PS：We can provide you with free samples for evaluation and test, please feel free to contact us
flame retardant abs plastic datasheet
Flame retardant abs plastic datasheet 30+Years Chi Mei Joint Venture & Direct Manufacturer Backed by a CNAS Laboratory| Customizable Colors & Performance" | |||||
| Flame retardant abs plastic datasheet PHYSICAL PROPERTY TABLE | |||||
| ITEM | UNIT | STANDARD | FR-300 | FR-330 | FR-350 |
| Vertical combustion | mm | UL94 | 1.5mm V03.0mm V0 | 1.5mm V03.0mm V0 | 1.5mm V03.0mm V0 |
| Vicat softening point | 50N 50°C/h | ISO 306 | 85 | 90 | 100 |
| Density | g/cm³ | ISO 1183 | 1.16 | 1.165 | 1.17 |
| Melt Flow Rate (220°C,10kg) | g/10min | ISO 1133 | 45 | 35 | 20 |
| Tensile Strength | MPa | ISO 527-2 | 42 | 43 | 44 |
| Elongation at break | % | ISO 527-2 | 9 | 9 | 9 |
| Flexural Strength | MPa | ISO 178 | 65 | 66 | 68 |
| Flexural Module | MPa | ISO 178 | 2200 | 2250 | 2350 |
| Izod Notch impac | J/m | ASTM D256 | 260 | 286 | 220 |
| Charpy Notch Impact | KJ/m² | ISO 179-1 | 24 | 26 | 21 |
| Physical properties table Flame retardant,heat resistant,impact resistant18 properties one-stop customization | ||||
| PHYSICAL PROPERTY TABLE | ||||
| ITEM | UNIT | STANDARD | HM-1200 | |
| Vertical Flammability | / | UL94 | 1.5mmV03.0mmV0 | |
| VICAT | 50N 50°C/h | ISO 306 | 84 | |
| Heat Deflection Temp | 1.82MPa unannealed | ISO 75-2 | 73 | |
| 1.82MPa annealed | ISO 75-2 | 86 | ||
| Density | g/cm³ | ISO 1183 | 1.165 | |
| Melt Flow Rate (220°C,10kg) | g/10min | ISO 1133 | 45 | |
| Ensile Strength | MPa | ISO 527-2 | 42 | |
| Elongation At Break | % | ISO 527-2 | 9 | |
| Flexural Strength | MPa | ISO 178 | 65 | |
| Flexural Strength | MPa | ISO 178 | 2200 | |
| Notch Impact | Charpy | KJ/m³ | ISO 179-1 | 22 |
| Izod | J/m | ASTM D256 | 220 | |

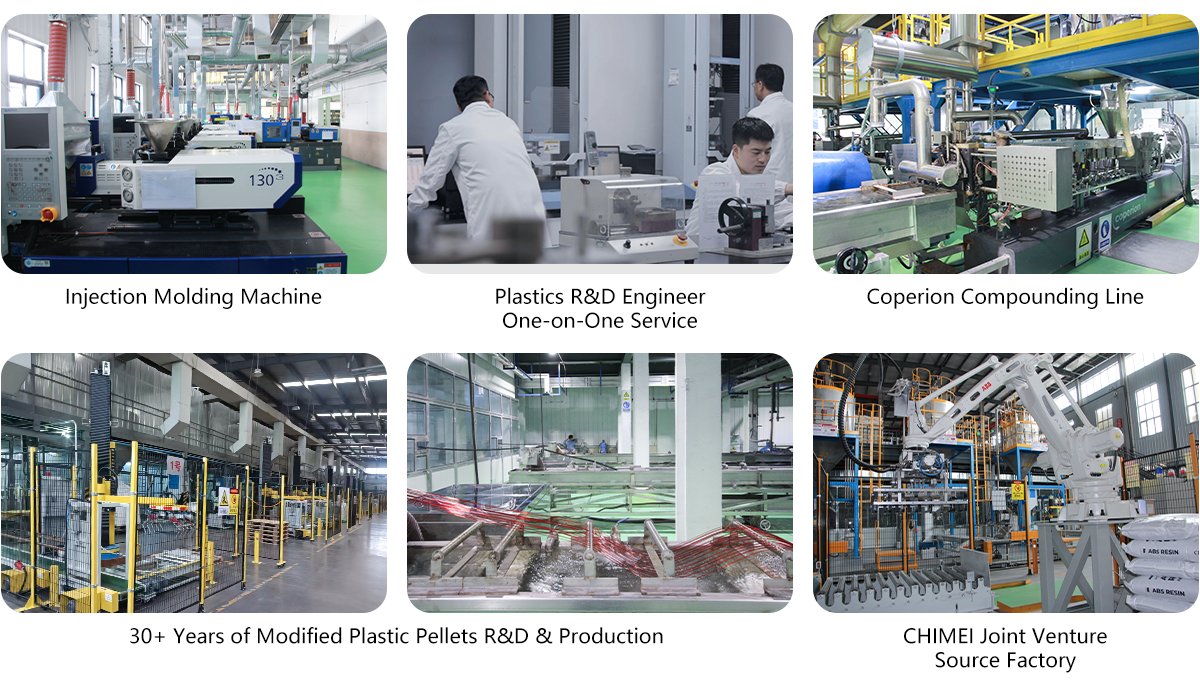

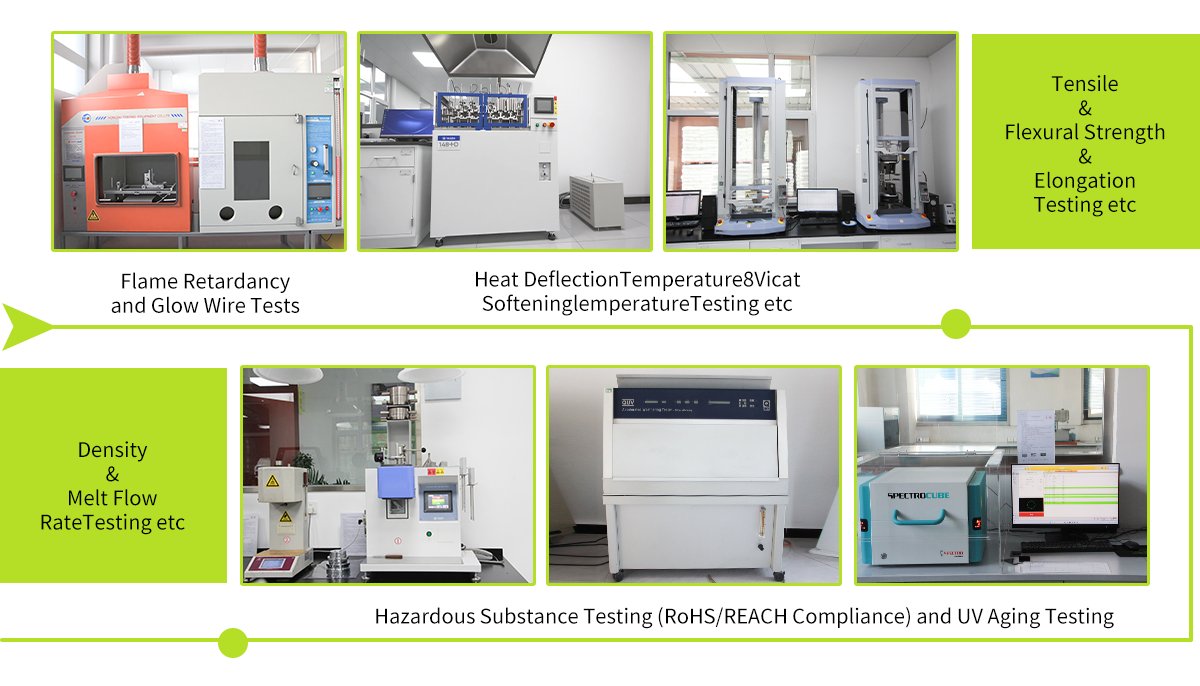

As a Chi Mei joint venture, we boast 30 years of rich industry experience in plastic materials manufacturing, specializing in products like PP plastic pellets, flame retardant ABS, and other engineered plastics. Our strength lies in a professional R&D team and advanced imported testing equipment, ensuring top-tier quality and technical support for flame retardant ABS and all our plastic solutions.
As a direct manufacturer of flame retardant ABS and other plastic materials, we eliminate middlemen to offer you discounted pricing on flame retardant ABS and other products. Enjoy stable quality, reliable delivery, and user satisfaction guaranteed—all at a cost-effective value for flame retardant ABS and beyond.
Our Cooperation Cases with Customers of Flame Retardant ABS
With top-tier flame retardancy performance, our ABS FR V0 is the industry standard for safety-critical applications:

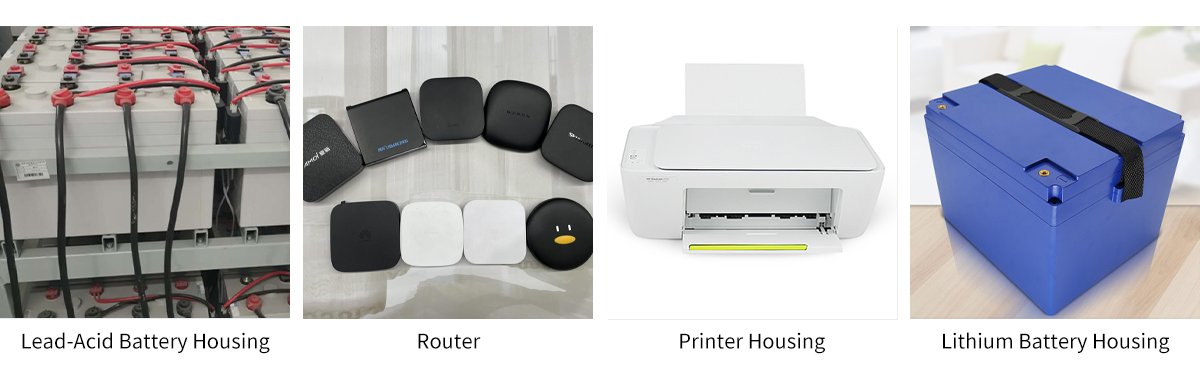

Electrical Enclosures:
Protects against overheating and short-circuit fires in home appliances and battery systems.
Transport Interiors:
Trusted for safety components in automotive, aerospace, and railway manufacturing.
Smart Home & Buildin ： Ideal for wall switches, sockets, and electrical fittings requiring high fire resistance ratings.
√ Client：Premier Spanish automotive injection molding manufacturer
√ Position：Core supplier to international Tier-1 automotive OEMs (BMW, Volkswagen, etc.)
√ Application：Automotive parts production
√ Material type：PP+EPDM+TD、 glass fiber reinforced PP
√ Critical Performance Metrics：Color consistency guaranteed at ΔE < 0.2、Batch-to-batch performance stability
