Polybutylene Terephthalate PBT
Qingdao Zhongxinhua Mei Plastic Co., Ltd. is a professional manufacturer of engineering plastic materials. You can order high-quality polyamide 6, paraformaldehyde, polycarbonate, polybutylene terephthalate and acrylonitrile butadiene styrene at favorable prices directly from our factory.
20% Glass Fiber Reinforced PBT GF20 Plastic Granules
Customized injection-grade PBT material with 20% glass fiber reinforcement, high strength, excellent dimensional stability

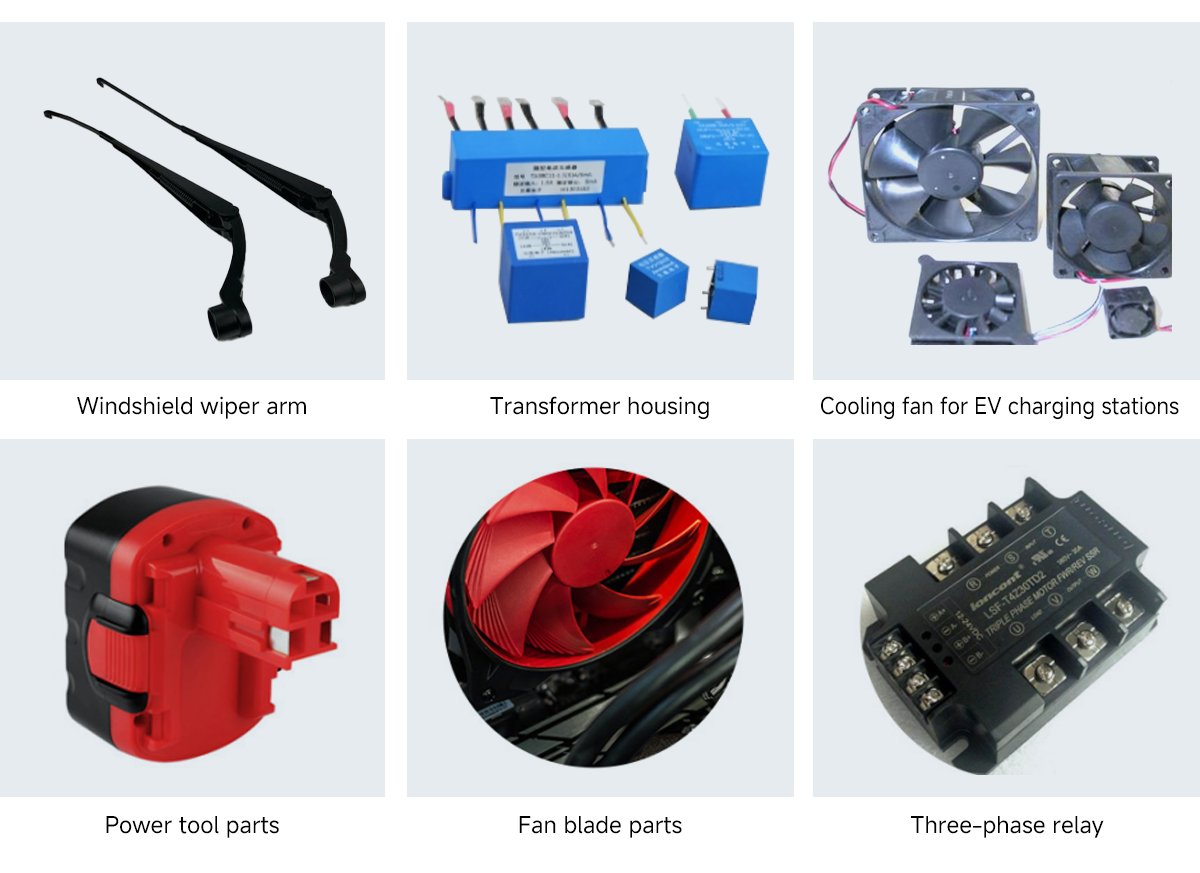

Applications
Used for engine sensor housing, ignition coil, lamp base, connectors, and fuel system components.
Circuit breaker housing, power adapter housing, smart meter components, optical fiber sheath, relay.
PS：We can provide you with free samples for evaluation and test, please feel free to contact us
Welcome to wholesale the high quality acrylic plastic granules red resin pmma material made in China from our factory. We are a 30+ year-old factory joint-ventured with CHIMEI. As one of the leading manufacturers and suppliers in China, we are equipped with advanced equipment and technology. Please be free to get the customized products from us.
Get Your Free Sample & Full TDS Now!
| Physical properties table Flame retardant,heat resistant,impact resistant18 properties one-stop customization | |||||||
| PHYSICAL PROPERTY TABLE | |||||||
| ITEM | UNIT | STANDARD | PBT GF20 | PBT GF30 | PRPBT GF20 | PRPBT GF30 | PRPBT GF30-1 |
| Tensile Strength | MPa | ISO 527-2 | 120 | 150 | 100 | 145 | 90 |
| Elongation at break | % | ISO 527-2 | - | - | - | - | - |
| Flexural Strength | MPa | ISO 178 | 180 | 220 | 170 | 215 | 180 |
| Flexural Module | MPa | ISO 178 | 6500 | 10000 | 5500 | 11500 | 9000 |
| Charpy Notch Impact | KJ/m² | ISO 179-1 | 6 | 14 | 4 | 9 | 8 |
| Lzod Notch impact | KJ/m² | ISO 180 | 7 | 15 | 6 | 10 | 8 |
| Density | g/cm³ | ISO 1183 | 1.45 | 1.55 | 1.53 | 1.62 | 1.52 |
| ASH | % | ISO 3451 | 20±1.5 | 50±1.5 | 20±2 | 30±2 | 30±2 |
| CTI | V | IEC 60112 | 250V | 250V | 250V | 250V | 400V |
| Flame retardant | / | UL-94 | HB | HB | 1.5mmV0 | 1.5mmV0 | 1.5mmV0 |
Chemical Resistance Excellence
PBT GF20 boasts superior resistance to a diverse array of chemicals, encompassing solvents, oils, and acids. This key characteristic renders it well-suited for applications frequently exposed to harsh environments or corrosive substances. Whether deployed in the automotive, electrical, or consumer goods industries, PBT GF20 can effectively withstand chemical erosion, thereby ensuring the long service life and reliable performance of end products.
Superior Electrical Insulation Performance
PBT GF20 delivers exceptional electrical insulation capabilities, making it an ideal material for electrical and electronic applications. Its impressive dielectric strength and low electrical conductivity facilitate the safe and efficient transmission of electrical signals, eliminating the risks of short circuits or electrical malfunctions. When combined with its reliable dimensional stability and strong chemical resistance, PBT GF20 becomes a go-to choice for manufacturing electrical connectors, housings, and various other electronic components.
Q:ABOUT SAMPLE
A:5 KG of sample is allowed, but the shipping cost at the buyer's responsibility. If more sample needed, we will refund the cost of sample in the first order (Trial order is not included).
Q:ABOUT MOQ
A:The minimum quantity of an order is dependent on different types of materials, please ask our sales representatives on the left/right side.
Q:ABOUT COLOR
A:We are able to make any colors according to customer's requirements. Customers can tell us PANTONE or RAL code directly or send us the products.
Q:ABOUT QUALITY
A:All the products we sell have tested through inspection standards, Certificate of Analysis(COA) is provided.
Q:ABOUT DELIVERY
A:We normally effect the shipment within 15 days after confirmation of order and advanced payment. It varies due to different types of plastic materials.
Q:ABOUT PAYMENT TERM
A:We accept T/T, Confirmed Irrevocable Letter of Credit and Online Deal Assured.
√ Client：Premier Spanish automotive injection molding manufacturer
√ Position：Core supplier to international Tier-1 automotive OEMs (BMW, Volkswagen, etc.)
√ Application：Automotive parts production
√ Material type：PP+EPDM+TD、 glass fiber reinforced PP
√ Critical Performance Metrics：Color consistency guaranteed at ΔE < 0.2、Batch-to-batch performance stability
