Is PC-ABS stronger than ABS?
Qingdao Zhongxin Huamei’s Polycarbonate Alloy is a high-performance engineering plastic. Our Polycarbonate Alloy boasts superior strength, durability and processability, complying with RoHS & REACH standards. Ideal for automotive interiors and industrial parts, this Polycarbonate Alloy from our 1997-founded factory offers custom solutions—contact us now!
PCPBT
Performance Advantages:
1. Customizable Flame Ratings: Supports 1.5mm VA, 5VB, V0, V1, V2, HB (all customizable).
2. V0-Class Flame Retardancy: 1.5mm thickness meets standards, extinguishes immediately after removing from flame.
3. Halogen-Free & EU-Certified: Halogen-free flame-retardant formula, compliant with EU standard certifications.

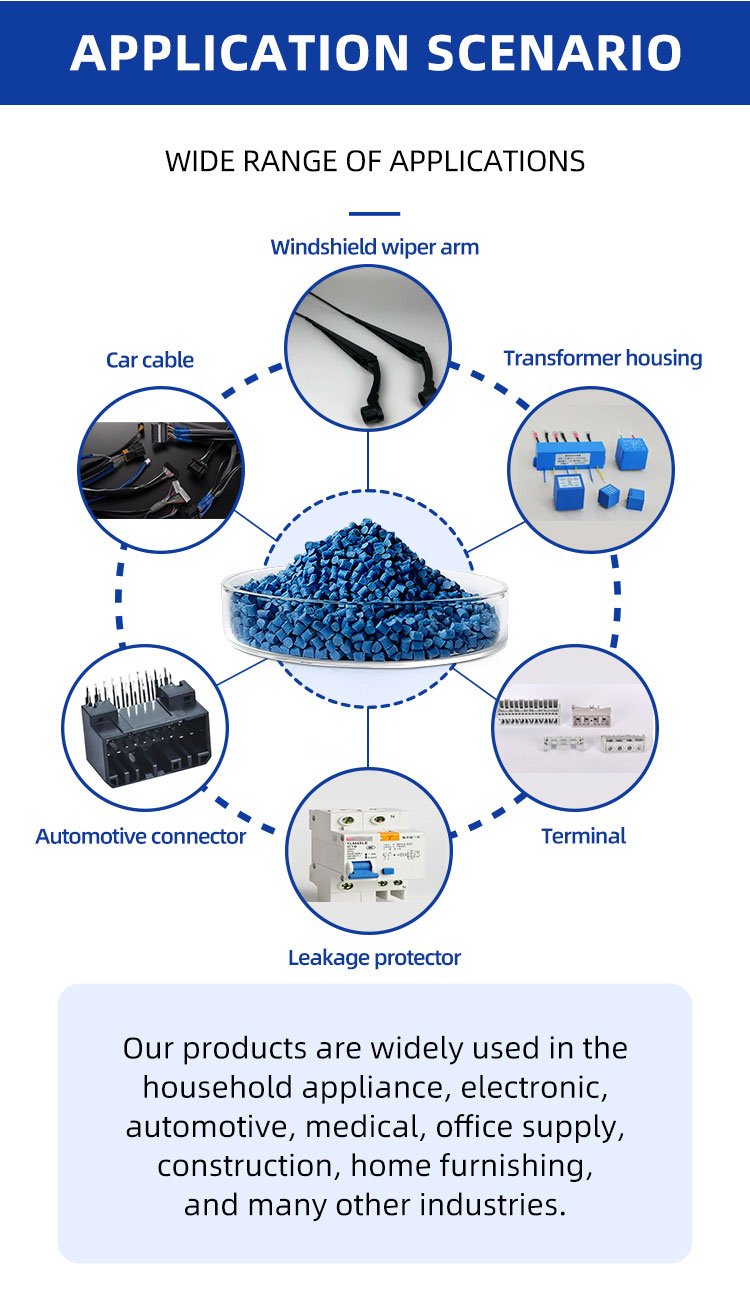

Wide Applications
High-end equipment manufacturing, electronic & electrical products, automotive industry, office equipment, communication devices, lighting industry, safety protection & building materials, charging piles, printers, 5G base station equipment enclosures, etc.
| Physical properties table Flame retardant,heat resistant,impact resistant18 properties one-stop customization | ||||||||
| PHYSICAL PROPERTY TABLE | ||||||||
| PCPBT | UNIT | STANDARD | PCA-308 | PCA-458 | PCA-658 | HM-330KZ | HM-345KZ | HM-365KZ |
| Melt Flow Rate (220°C,10kg) | g/10min | 1133 | 25 | 25 | 22 | 20 | 20 | 18 |
| Density | g/cm³ | 1183 | 1.07 | 1.1 | 1.13 | 1.08 | 1.1 | 1.13 |
| Tensile Strength | MPa | 527 | 45 | 50 | 55 | 47 | 50 | 55 |
| Elongation At Break | % | 527 | 50 | 100 | 120 | 50 | 100 | 120 |
| Flexural Strength | MPa | 178 | 70 | 75 | 78 | 70 | 75 | 78 |
| Flexural Module | MPa | 178 | 2100 | 2200 | 2200 | 2100 | 2200 | 2200 |
| Charpy Notch Impact | KJ/m² | 179 | 35 | 40 | 45 | 36 | 42 | 47 |
| Lzod Notch impact | KJ/m² | 180/A1 | 40 | 45 | 50 | 35 | 40 | 45 |
| Heat distortion temperature | °C | 75/A | 80 | 93 | 102 | 105 | 110 | 125 |
| Combustion performance | / | UL-94 | 1.5mmV0 | 1.5mmV0 | 1.5mmV0 | 1.5mmV0 | 1.5mmV0 | 1.5mmV0 |
| Shrinkage | % | 294 | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 |
