Polycarbonate PC

Qingdao Zhongxinhua Mei Plastic Co., Ltd. is a professional manufacturer of engineering plastic materials. You can order high-quality polyamide 6, paraformaldehyde, polycarbonate, polybutylene terephthalate and acrylonitrile butadiene styrene at favorable prices directly from our factory.

PC (polycarbonate) Flame-Retardant Grades

PC (polycarbonate) Flame-Retardant Grades

1. Meets V0 grade standards at 1.5mm thickness, self-extinguishes immediately after removing the flame.

2. Halogen-Free & EU-Compliant

3. Halogen-free flame retardant formula, fully complies with EU standards and certifications.

4. Excellent Heat Resistance

Heat distortion temperature (HDT) reaches 120℃, suitable for high-temperature scenarios.

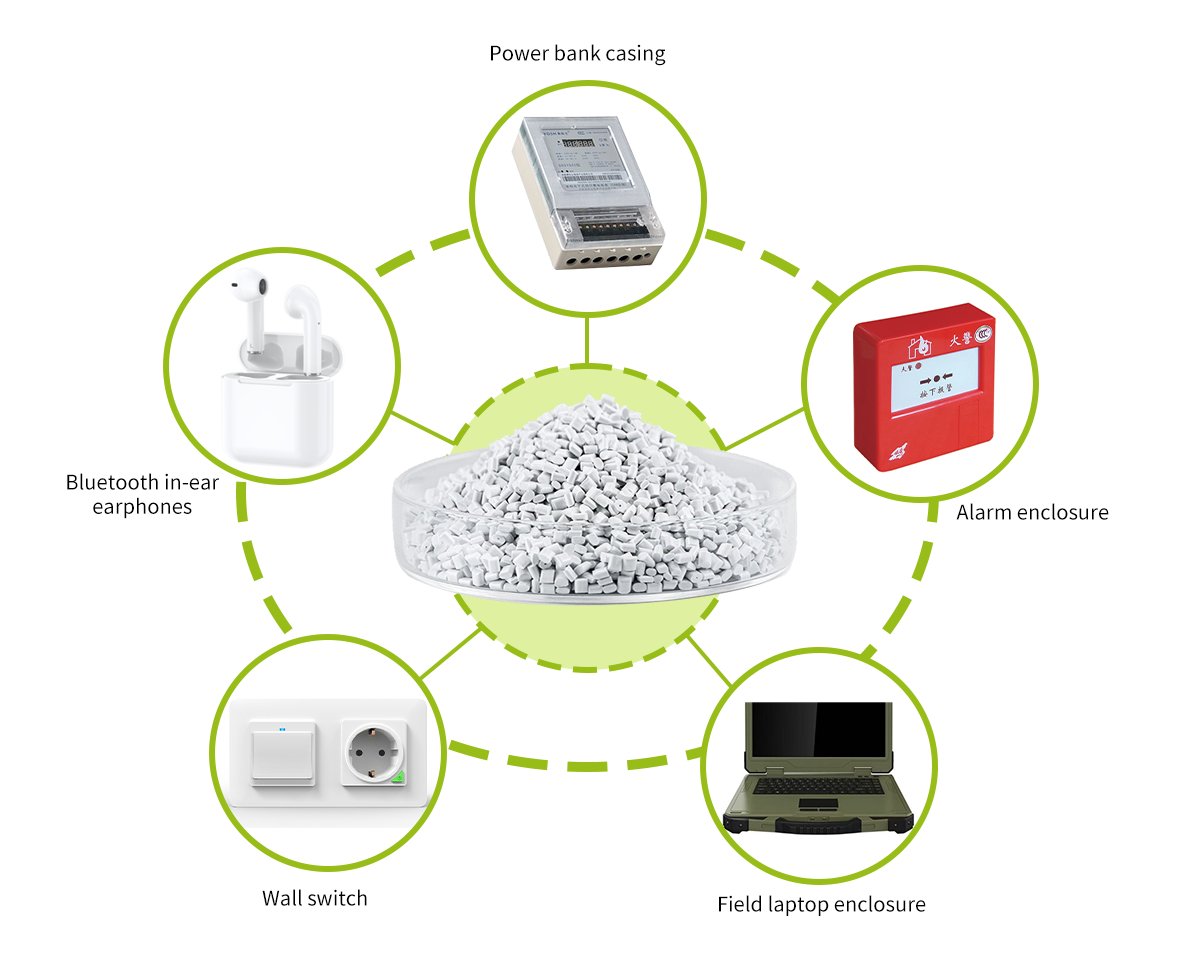

Typical Applications

1．Power sockets

2．Wall switches

3．Mobile phone chargers

4．Smart electricity meter housings

PS：We can provide you with free samples for evaluation and test, please feel free to contact us

Product Details

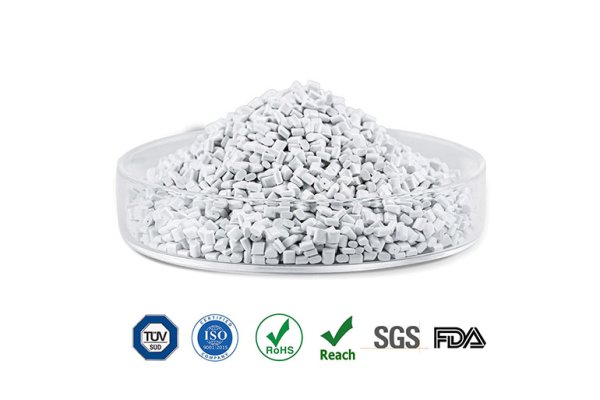

Welcome to wholesale the high qualityFR V0 PC Resin material made in China from our factory. We are a 30+ year-old factory joint-ventured with CHIMEI. As one of the leading manufacturers and suppliers in China, we are equipped with advanced equipment and technology. Please be free to get the customized products from us.

Physical properties table Flame retardant,heat resistant,impact resistant18 properties one-stop customization
PHYSICAL PROPERTY TABLE
PHYSICAL PROPERTY TABLE
ITEM	UNIT	STANDARD	TEST CONDITION	FRPC-1	FRPC-2	FRPC-3	FRPC-4	FRPC-5
Density	g/cm³	ISO 1183	23°C	1.2	1.2	1.2	1.2	1.2
Melt Flow Rate	cm³/10min	ISO 1133	300°C/1.2kg	20	19	10	10	15
Shrinkage	%	ISO 2577	-	0.5-0.7	0.5-0.7	0.4-0.6	0.4-0.6	0.4-0.6
Rockwell hardness R-Scale	-	ISO 2039-2	45659	120	120	122	123	122
Tensile strength	MPa	ISO 527	50mm/min	62	60	70	65	65
Elongation	%	ISO 527	50mm/min	100	70	120	120	110
Flexural Strength	MPa	ISO 178	2mm/min	90	90	90	90	85
Flexural Modulus	GPa	ISO 178	2mm/min	2.4	2.5	2.3	2.3	2.4
Notched impact strength	KJ/m²	ISO 180	Notched,23°C	70	55	70	70	50
Heat Deflection temperature	°C	ISO 75-2	1.8kg,120°C/hr (duplicate)	104	88	125	25	115
Solidification temperature	°C	ISO 306	10kg,50°C/min (unannealed)	125	110	150	150	148
Combustion grade	-	UL-96	-	0.6mmV0	0.8mmV0	1.0mmV0	2.5mmV0	3mmV0 灼热丝 850°C,1.5mm
Drying temperature	°C	-	-	100-105	85-90	120	120	110
Drying time	Hrs	-	-	4-6	4-6	4-6	4-6	4-6
Cylinder temperature	°C	-	-	260-280	250-270	280-310	280-310	260-280
Mold Temperature	°C	-	-	70-100	70-100	70-100	70-100	70-100

FR V0 PC Resin: Properties & Application Fields

FR V0 PC resin refers to flame-retardant V0 grade polycarbonate (PC) resin. Polycarbonate (PC) itself is a colorless, transparent material with heat resistance, impact resistance, flame retardancy, and good mechanical properties at normal operating temperatures (note: it is not UV resistant).

Compared with polymethyl methacrylate (a material with similar properties), polycarbonate (PC) (and thus FR V0 PC resin) has better impact resistance, higher refractive index, and superior processability.

Physical Properties of FR V0 PC Resin

Excellent mechanical properties, high transparency, and good flame retardancy (V0 grade-compliant).
Resistant to acid and oil, but not resistant to strong alkalis.
High heat distortion temperature, good flame retardancy, and wear resistance.
High heat distortion temperature, high dielectric strength, electrical insulation, and good flame retardancy.

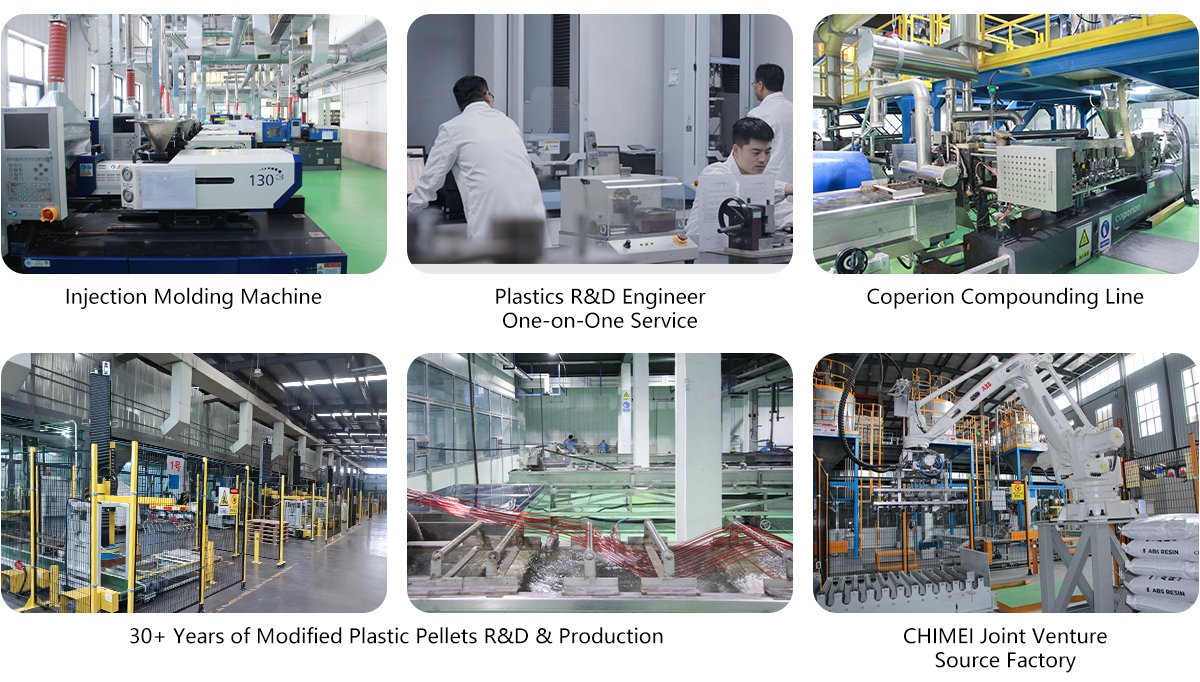

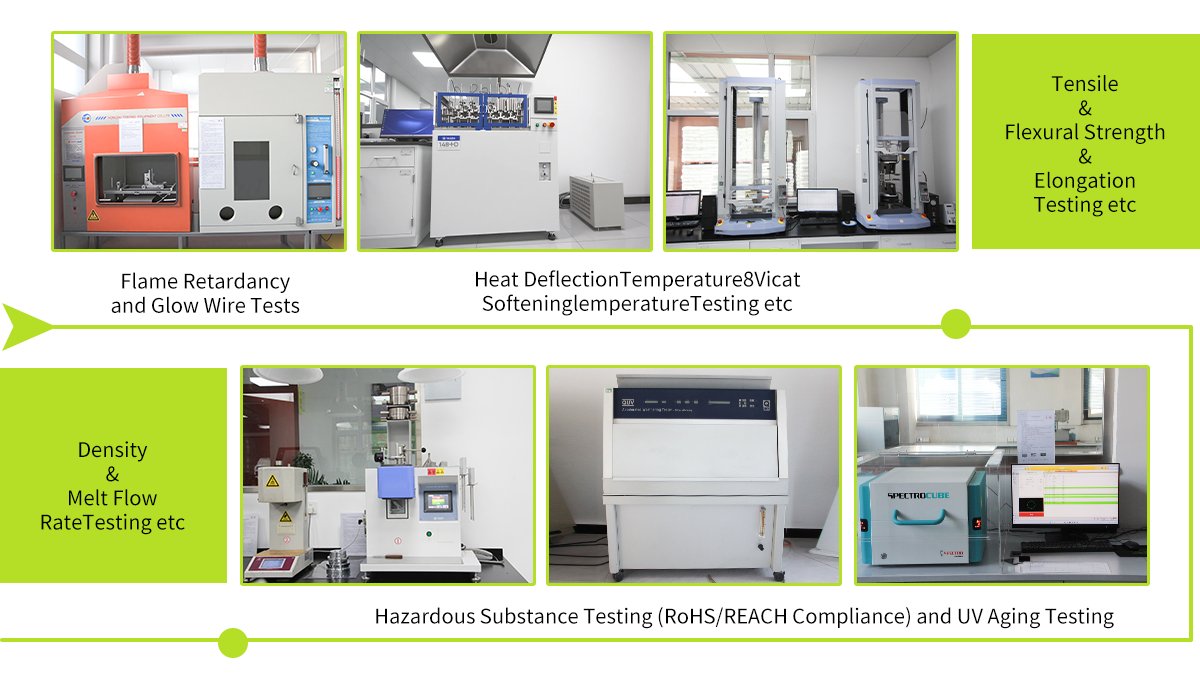

As a source factory jointly invested with CHIMEI, we rely on Chimei’s CNAS-accredited laboratory and boast over 30 years of experience in R&D and production of modified plastics. The color and performance of our plastic granules can be customized according to customer requirements.

We offer customized packaging solutions tailored to your specific needs. Click here to claim your samples and material data sheets now.more about our plastic granules.
